VTD-TND8RMEA

Transcendent Series 8 MP Indoor/Outdoor WDR IP Motorized Dome Camera with Matrix IRs

• 1/2.8” 8.0 MegaPixel (4K) CMOS Image Sensor
• 8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP (2592 × 1944), 720P (1280 × 720), D1, CIF, 480 × 240 [1~30fps]
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165’ IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Programmable Analytics: Region Intrusion Detection, Scene Change Detection, Line Crossing
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic* + CVBS Out
• Remote Viewing via CMS, Edge in IE Mode, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2), Pendant Mount (VT-TPDMT-A2), and In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available
• Available in Ivory or Charcoal (VTD-TND8RMEAB)
• NDAA Compliant
• 12VDC & PoE (Power over Ethernet) Operation
• 3 Year Warranty

Specifications:

• Image Sensor 1/2.7” 8.0 Megapixel [4K] Progressive Scan CMOS
• Image Size 8 MegaPixel (3840 × 2160)
• Resolution Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ),5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
• Min. Illumination 0.02 lux @ F1.6, AGC ON; 0 lux with IR, 0.01lux@F1.2, AGC ON; 0 lux with IR
• Electronic Shutter 1s ~ 1 / 100000s
• Lens 2.8~12mm Motorized Varifocal Lens
• Day/Night True Day/Night by ICR
• IR LEDs 3 Matrix IRs
• IR Distance Up to 165‘
• Video Compression H.265+ / H.265 / H.264+ / H.264 /MJPEG
• Audio Compression G.711A / G.711U
• Main Stream 8MP [4K] (1~20fps) / 6MP / 5MP / 720P / D1 / CIF / 480 x 240 (1~30fps)
• Sub Stream, Third Stream 60Hz: 720P/D1/480 × 240(1~30fps), 60Hz: D1/CIF/480 × 240 (1~30fps)
• Bit Rate / Type 64 Kbps ~ 12 Mbps / VBR + CBR
• WDR 120dB Super WDR
• DNR 3D-DNR
• Backlight Compensation Yes
• Highlight Compensation Yes
• Defog Yes
• Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser
• Analytics Region Intrusion, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
• Smart Alarm Motion Detection, SD Card Error, SD Card Full
• General Functions Watermark, IP Filter, Video Mask, Illegal Login Lock
• Region of Interest (ROI) Each ROI to be configured separately
• Hardware Reset Yes
• Analog Video Output No
• Audio 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic* + CVBSAlarm 1 Ch. Alarm In + 1 Ch. Alarm Out
• Local Storage Built-in Micro SD card slot up to 256GB
• Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
• Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab, and Edge in IE mode
• Connection Protocol ONVIF
• Weather Resistance IP67 Weather Resistance
• Impact Rating IK10
• Power Input 12VDC / PoE
• Power Consumption 12VDC 30mA (LEDs Off) / 875mA (LEDs On),
• Power Consumption PoE < 10.5W
• Working Environment -22° ~140° / < 95% Humidity
• Weight Net (Shipping) 33.51oz / 2.01lb / 950g (52.91oz / 3.31lb / 1500g)
• Dimensions (Dia×H) 5.55 × 3.95” (141.0 × 100.2mm)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• Transcendent Series NDAA Compliant High Definition 8 Megapixel [4K] IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

Accessories:

• VT-TJB010: Junction Box for Cable Management for use with NEW DESIGN Transcendent Motorized HDA Vandal Domes – Ivory

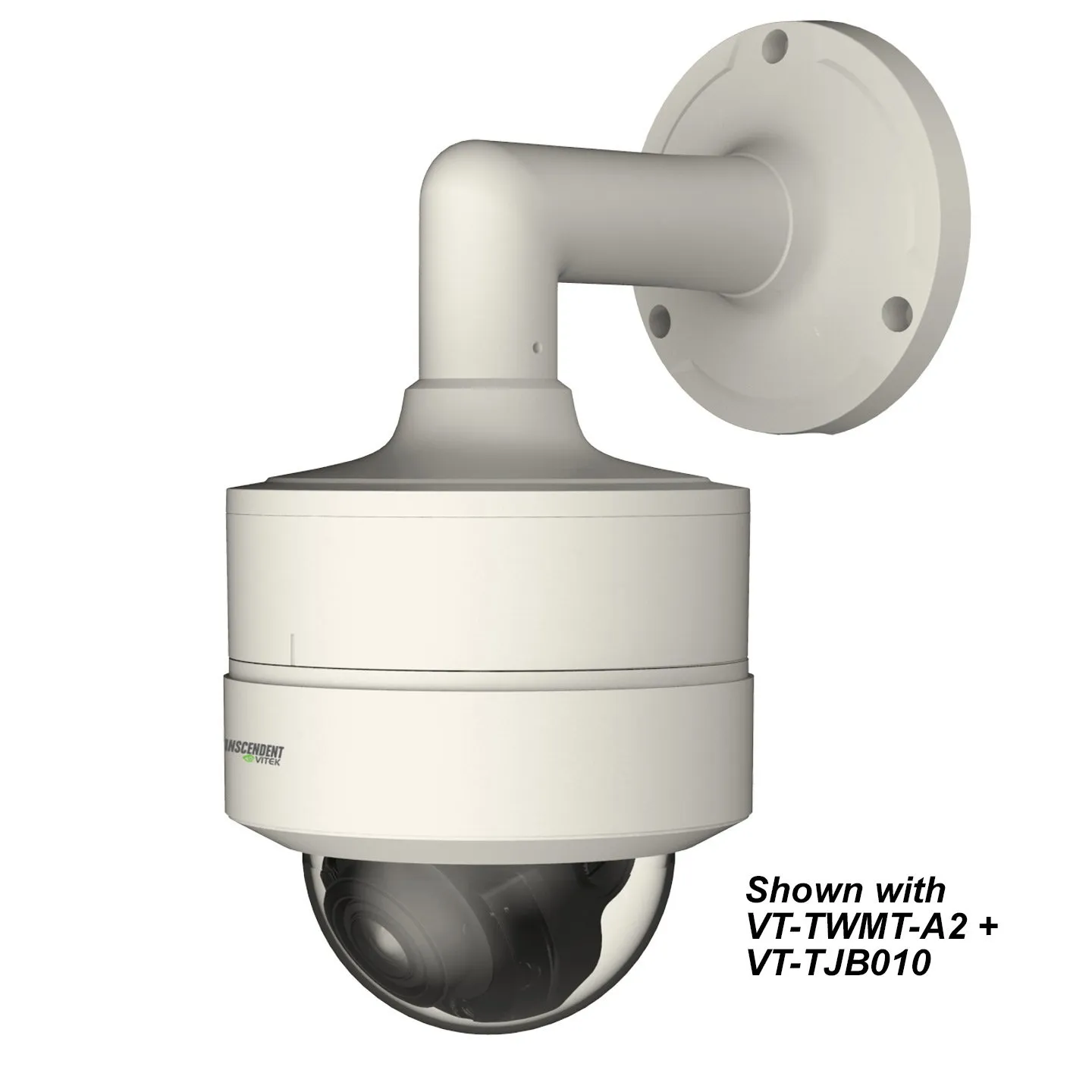

• VT-TWMT-A2: Wall Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
• VT-TPDMT-A2: Pendant Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
• VT-TFMT-L2: Semi Flush Ceiling Dome Mount For Use w/Large Motorized Vandal Dome – NEW DESIGN FOR HDA Domes – Ivory

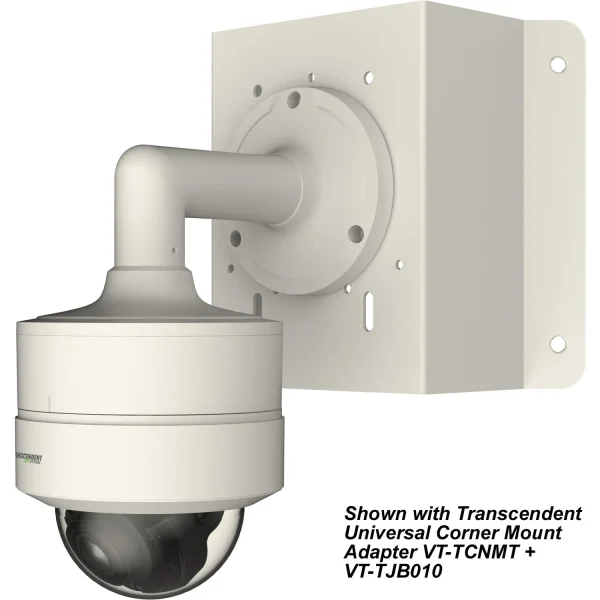

• VT-TCNMT: Universal Transcendent Corner Mount Adapter – reqs. VT-TJB010 or VT-TWMT-A2 + VT-TJB010
• VT-TPLMT: Universal Transcendent Pole Mount Adapter – reqs. VT-TJB010 or VT-TWMT-A2 + VT-TJB010

Configurations:

• VTD-TND8RMEA

8 MegaPixel [4K] H.265 20fps Motorized Vandal Dome Camera 3 Matrix IR w/165′ Range, Two-Way Audio, Programmable Analytics, 2.8~12mm Lens, Metal Housing, 12VDC/PoE, IP67 + IK10, Ivory

• VTD-TND8RMEAB

8 MegaPixel [4K] H.265 20fps Motorized Vandal Dome Camera 3 Matrix IR w/165′ Range, 2-Way Audio, Basic Analytics, 2.8~12mm Lens, Metal Housing, 12VDC/PoE, IP67 + IK10, Charcoal Grey
