VTC-TNB8RFA4-2

8 MegaPixel GEN IV Advanced A.I. Fixed IP Bullet Camera

• 1/2.8” 8.0 Megapixel (4K) CMOS Image Sensor
• Up to 20fps live view @ 8 MegaPixel (3840×2160), 30fps @ 5/4/3MP/1080/720p/D1/CIF/480×240
• Available with 2.8mm Fixed Lens in Ivory or Charcoal: VTC-TNB8RFA4-2 (Ivory w/ 2.8mm), VTC-TNB8RFA4B-2 (Charcoal w/ 2.8mm)
• Supports Still Image Recording Function
• 2 Matrix IRs (up to 165’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D Digital Noise Reduction)
• GEN IV Advanced Analytics: Intrusion Detection, Line Crossing, Target Counting (All by Human / Motor Vehicle Classification), Face A.I., Video Blur, Video Color Cast Detection, Abnormal Video
• Face A.I. 4.0(Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
• 1 Channel Audio In*
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (up to 256GB)
• IP67 Weather Resistance

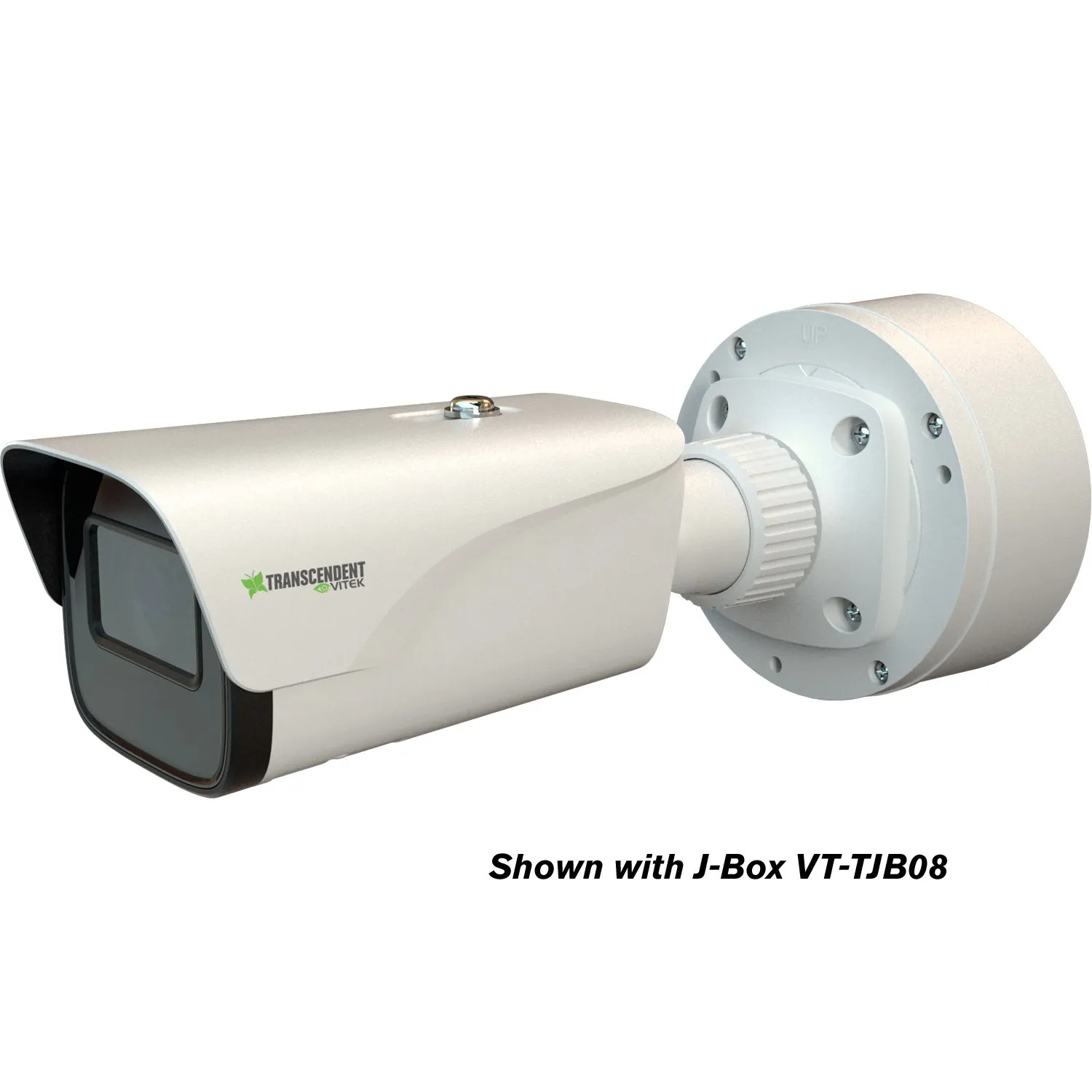

• Included Wall Mount, Optional Junction Box (VT-TJB08) Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty

Specifications:

• Image Sensor  1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor
• NDAA Compliant Yes
• Image Size 8 MegaPixel (3840×2160)
• Resolution 8MP(3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944), 4MP(2592 × 1520 ), 4MP(2560 × 1440 ), 3MP(2304 × 1296),  1080P(1920 × 1080 ), 720P(1280 × 720), D1, CIF, 480 × 240
• Min. Illumination 0.01 lux @ F1.2, AGC ON; 0 lux with IR, 0.02 lux@F1.6, AGC ON; 0 lux with IR
• Lens 2.8mm Fixed Iris Lens
• Still Image Recording Yes, Supports Still Image Recording Functions
• Day/Night True Day/Night by ICR
• IR LEDs  / Distance 2 Matrix / 165’
• Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Audio Compression G.711A / G.711U
• Main-Stream 60Hz: 8/6/5/4MP/2K/3MP/1080P/720P(1~30fps), 50Hz: (1~25fps),
  HFR:1080P 720P(60Hz: 1 60fps; 50Hz: 1~50fps)
• Sub / Third Stream 1080P/720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps), 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
• Bit Rate 64Kbps ~ 12Mbps
• Wide Dynamic Range (WDR) 120dB Super WDR
• Other Features Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
• Digital Noise Reduction (DNR) XD-DNR (2D-DNR & 3D-DNR)
• Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
• Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
• GEN IV Advanced Analytics Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face A.I., Video Blur, Video Color Cast Detection, Abnormal Vide
• Face A.I. 4.0 Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
• Smart Alarm Motion Detection, SD Card Error, SD Card Full
• Region of Interest (ROI) Each ROI to be Configured Separately
• Network RJ45
• Audio 1 Ch. Audio In*
• Local Storage MicroSD Card Slot (Up to 256GB)
• Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
• Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
• Connection Protocol ONVIF
• Ingress Protection IP67
• Power Input 12VDC / PoE
• Power Consumption (12VDC) 350mA (LEDs Off) / 800mA (LEDs On)
• Power Consumption (PoE) < 9.5W
• Working Environment -22° ~140° / < 95% Humidity
• Weight 25.75oz / 1.61lbs / .73kg (NET) 31.75oz / 1.98lbs / .90kg (SHIPPING)
• Dimensions: L × W × H 8.68 × 3.15 × 2.78”  (220.5 × 80.1 × 70.5mm)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• Transcendent Series NDAA Compliant High Definition 8 Megapixel [4K] IP Network Cameras with GEN IV Advanced Analytics including Face Detection and Target Counting offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

Accessories:

• VT-TJB08: Junction Box for Cable Management for use with Select Transcendent Bullet and Turret Style Cameras
• VT-TPLMT: Universal Transcendent Pole Mount Adapter – Ivory
• VT-TCNMT: Universal Transcendent Corner Mount Adapter – Ivory

Configurations:

• VTC-TNB8RFA4-2

NDAA Compliant 8 MegaPixel [4K] H.265+, 20fps@8MP, 30fps@5MP and Below, Fixed Bullet Camera 2 Matrix IRs w/ up to 165′ IR Range, GEN IV Advanced Analytics, 2.8mm, Metal Housing, 12VDC/PoE, IP67 – Ivory

• VTC-TNB8RFA4B-2

NDAA Compliant 8 MegaPixel [4K] H.265+, 20fps@8MP, 30fps@5MP and Below, Fixed Bullet Camera 2 Matrix IRs w/ up to 165′ IR Range, GEN IV Advanced Analytics, 2.8mm, Metal Housing, 12VDC/PoE, IP67 – Charcoal

Downloads:

• VTC-TNB8RFA4-2: Spec Sheet
• VTC-TNB8RFA4-2: Quick Start
• Transcendent GEN IV IP Camera Manual
• Transcendent VMS for Windows: Manual
• Transcendent VMS for Mac OSX: Manual
• Transcendent IP Tool 3.0
• Transcendent VMS for Windows: 32 Bit
• Transcendent VMS for Windows: 64 Bit
• Transcendent VMS for macOS
• Control4 Streaming Driver for Transcendent IP Cameras
