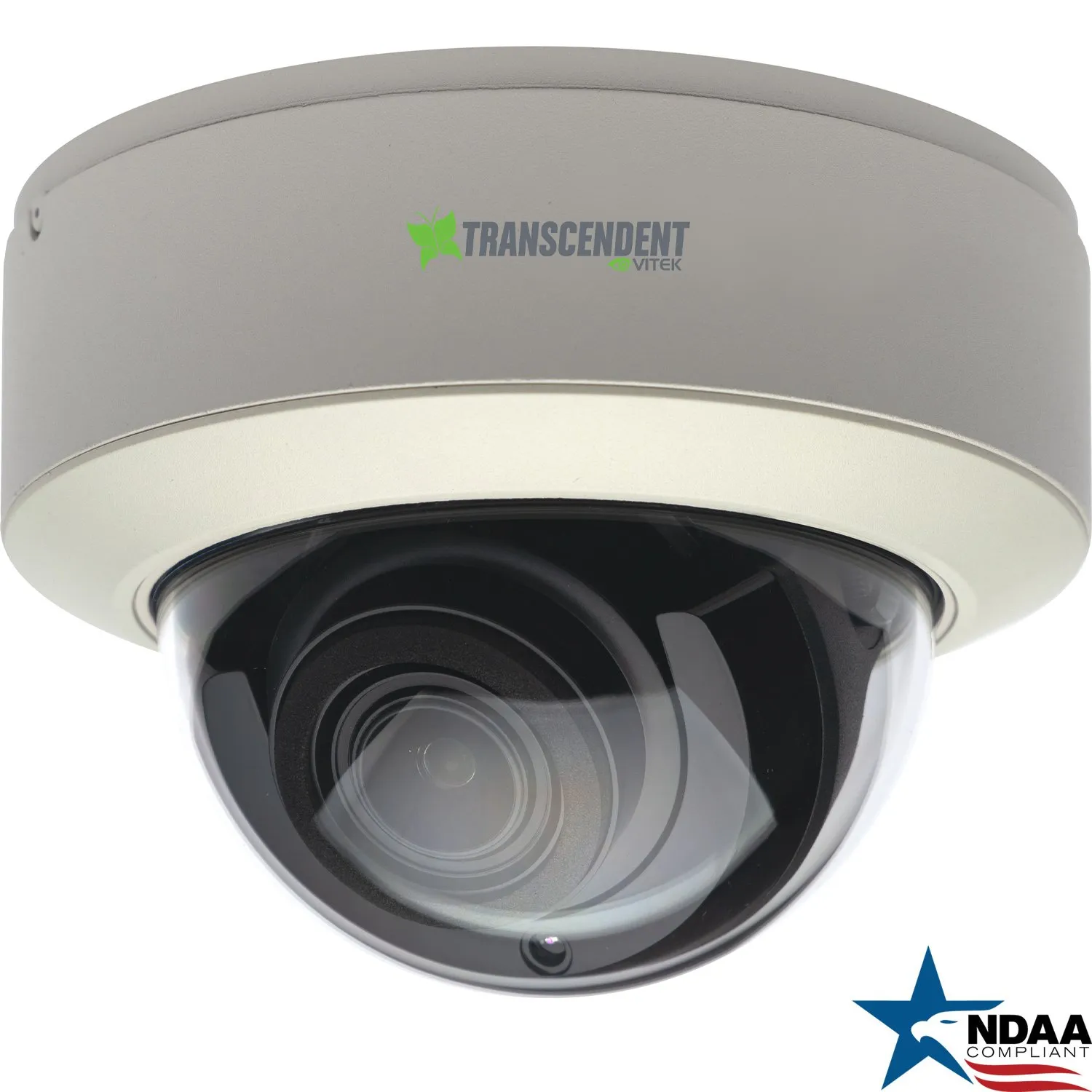

VTD-TND8RMA4

8 MegaPixel GEN IV Advanced A.I. Motorized IP Vandal Dome Camera

• 1/2.8” 8 MegaPixel [4K] Progressive Scan CMOS Sensor
• Up to 30fps live view @ 8 MegaPixel (3840×2160)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165’ IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day / Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• GEN IV Advanced Analytics: Regional Entrance / Exiting Detection, Line Crossing, Target Counting [All by Human/ Motor Vehicle Classification] Face A.I., Crowd Density, Abandoned / Missing Object, Abnormal Video
• Face A.I. 4.0(Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*
• 1 Ch. Alarm In + 1 Ch. Alarm Out + 1 Ch. CVBS Video Out
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2), Pendant Mount (VT-TPDMT-A2), and In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available
• NDAA Compliant
• 12VDC & PoE (Power over Ethernet) Operatio

Specifications:

• Image Sensor 1/2.8” 8.0 Megapixel [4K] Progressive Scan CMOS
• NDAA Compliant Yes
• Image Size 8 MegaPixel (3840 × 2160)
• Resolution 8MP (3840×2160), 6MP(3072×2048), 5MP(2592×1944), 4MP(2592×1520), 2K(2560×1440 ), 3MP(2304×1296 ), 1080P(1920×1080), 720P(1280×720 ), D1, CIF, 480×240
• Min. Illumination 0.01 lux @F1.2, AGC ON; 0 lux with IR, 0.015 lux @ F1.4, AGC ON; 0 lux with IR
• Lens 2.8mm~12mm Motorized Varifocal
• Day / Night True Day / Night by ICR
• IR LEDs / IR Distance 3 Matrix Style IRs / Up to 165’
• Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Audio Compression G.711A / G.711U
• Main-Stream 60Hz: 8/6/5/4MP/2K/3MP/1080P/720P(1~30fps), 50Hz: (1~25fps) HFR:1080P 720P(60Hz: 1 60fps; 50Hz: 1~50fps)
• Sub / Third Stream 1080P/720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps), 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
• Bit Rate / Type 64 Kbps ~ 12 Mbps / VBR, CBR
• Wide Dynamic Range 120dB Super WDR
• Other Features Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
• Digital Noise Reduction XD-DNR (3D-DNR & 2D-DNR)
• Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
• GEN IV Advanced Analytics Regional Intrusion Detection, Regional Entrance / Exit Detection, Line Crossing, Target Counting [all by Human / Motor Vehicle Classification]
  Face A.I., Crowd Density, Abandoned / Missing Object, Abnormal Video, Smart Alarm Motion Detection, SD Card Error, SD Card Full
• Face A.I. 4.0 Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
• Region of Interest (ROI) Each ROI to be configured separately
• Audio 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*
• Video Output 1 Ch. CVBS Video Out
• Alarm 1 Ch. Alarm In + 1 Ch. Alarm Out
• Local Storage Built-in MicroSD Card Slot (up to 256GB)
• Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
• Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
• Connection Protocol ONVIF
• Ingress Protection / Impact IP67 + IK10
• Power Input 12VDC / PoE
• Pwr Consumption 12VDC, PoE 500mA (LEDs Off) / 1050mA (LEDs On), 10.5W
• Working Environment -22° ~140° / < 95% Humidity
• Weight 38.80 oz. / 2.42 lbs. / 1.1kg (NET) 48.86 oz. / 2.87 lbs/ 1.3kg (SHIPPING)
• Dimensions (Dia × H) 5.55” × 3.95” (141.0mm × 100.2mm)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• Transcendent Series NDAA Compliant High Definition 8 Megapixel [4K] IP Network Cameras with GEN IV Advanced Analytics offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

Accessories:

• VT-TJB010: Junction Box for Cable Management for use with NEW DESIGN Transcendent Motorized HDA Vandal Domes – Ivory
• VT-TWMT-A2: Wall Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
• VT-TPDMT-A2: Pendant Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
• VT-TFMT-L2: Semi Flush Ceiling Dome Mount For Use w/Large Motorized Vandal Dome – NEW DESIGN FOR HDA Domes – Ivory

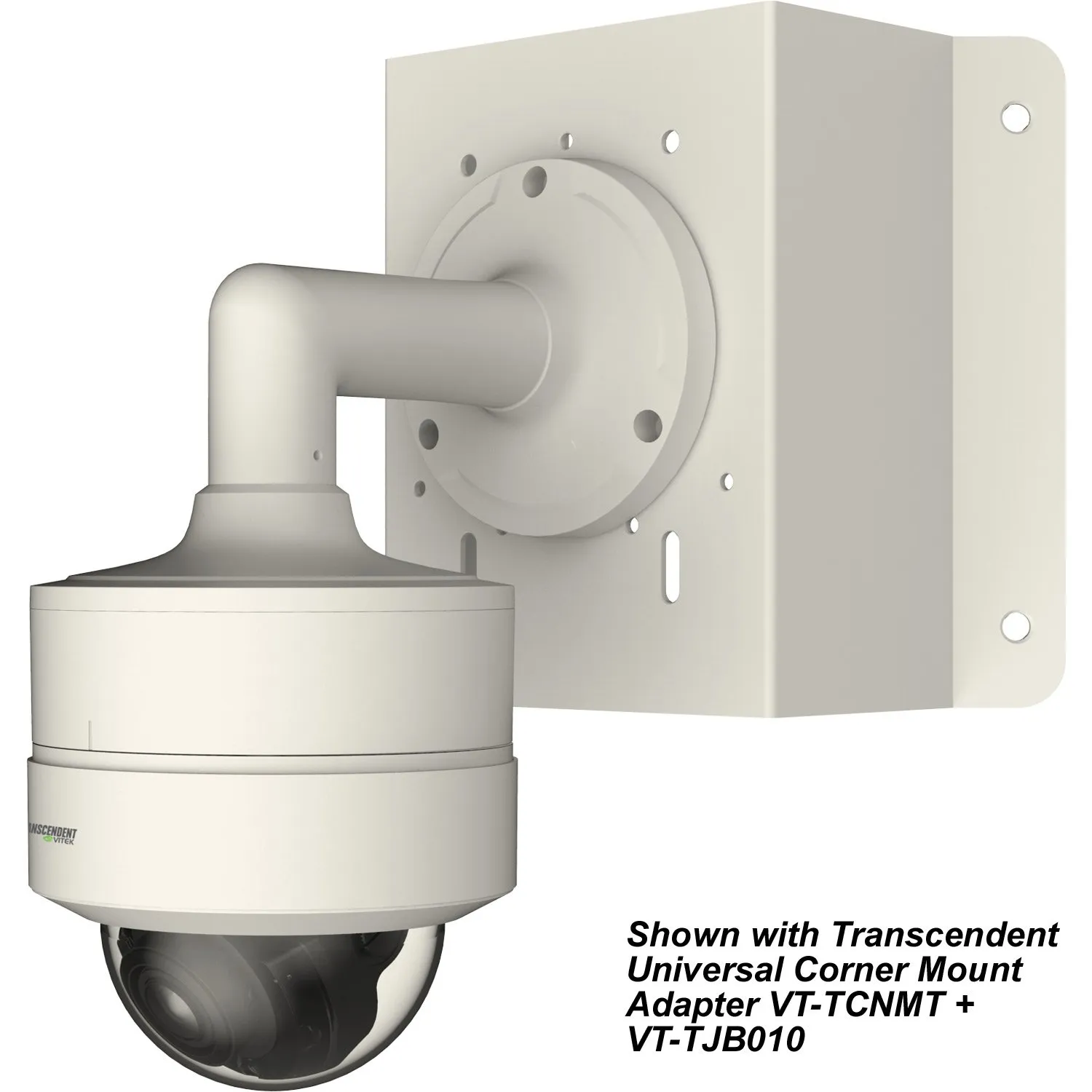

• VT-TCNMT: Universal Transcendent Corner Mount Adapter – reqs. VT-TJB010 or VT-TWMT-A2 + VT-TJB010
• VT-TPLMT: Universal Transcendent Pole Mount Adapter – reqs. VT-TJB010 or VT-TWMT-A2 + VT-TJB010

Configurations:

• VTD-TND8RMA4

NDAA Compliant 8 MegaPixel [4K] H.265+, 30fps@8MP, Motorized Vandal Dome Camera, 3 Matrix IRs w/ up to 165′ IR Range, GEN IV Advanced Analytics, Audio In/out + Built-in Mic, MicroSD [up to 256GB], 2.8~12mm Motorized AF Lens, Metal Housing, 12VDC/PoE, IP67, IK10 – Ivory

• VTD-TND48MA4B

NDAA Compliant 8 MegaPixel [4K] H.265+, 30fps@8MP, Motorized Vandal Dome Camera, 3 Matrix IRs w/ up to 165′ IR Range, GEN IV Advanced Analytics, Audio In/out + Built-in Mic, MicroSD [up to 256GB], 2.8~12mm Motorized AF Lens, Metal Housing, 12VDC/PoE, IP67, IK10 – Charcoal

Downloads:

• VTD-TND8RMA4: Spec Sheet
• VTD-TND8RMA4: Quick Start
• Transcendent GEN IV IP Camera Manual
• Transcendent VMS for Windows: Manual
• Transcendent VMS for Mac OSX: Manual
• Transcendent IP Tool 3.0
• Transcendent VMS for Windows: 32 Bit
• Transcendent VMS for Windows: 64 Bit
• Transcendent VMS for macOS
• Control4 Streaming Driver for Transcendent IP Cameras
