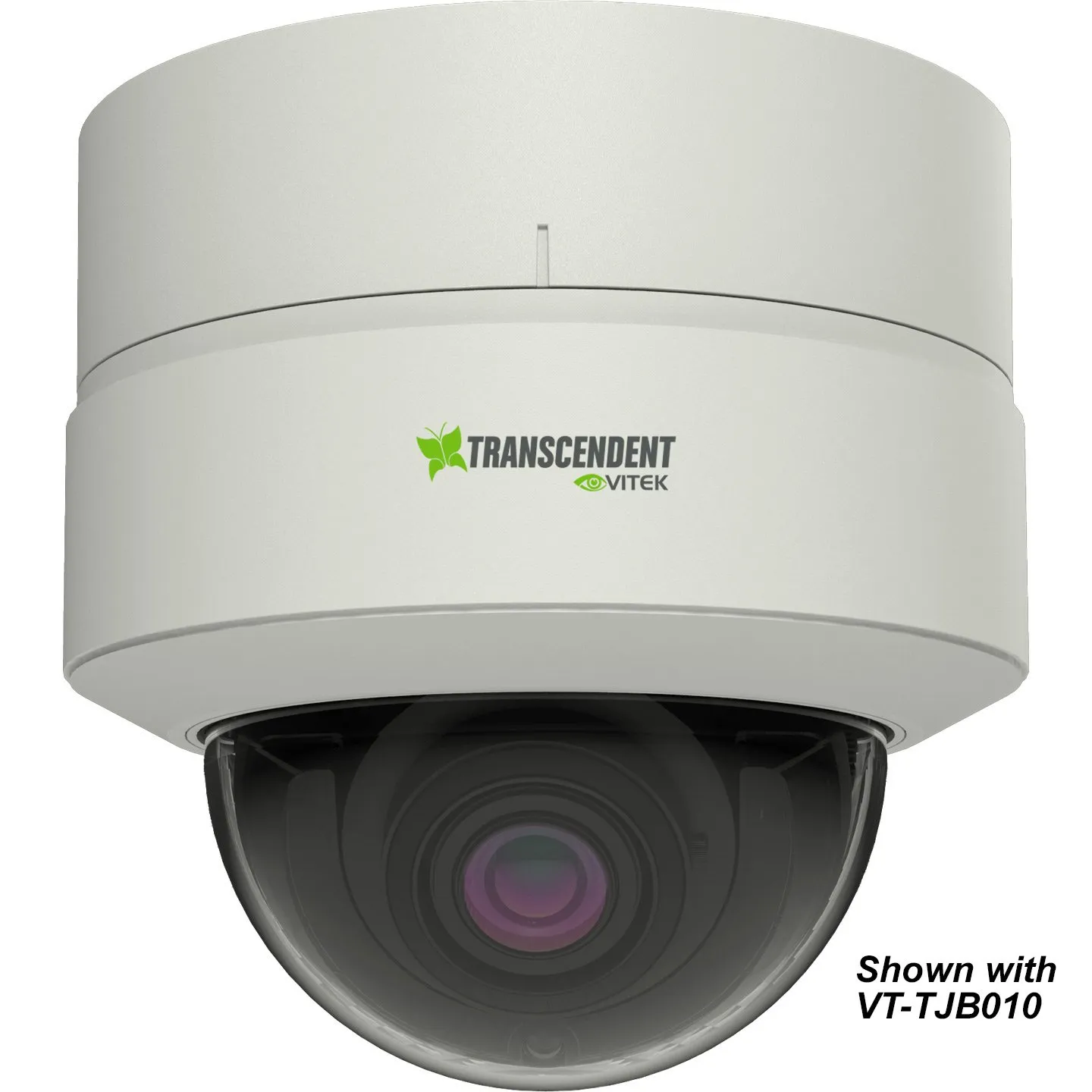

Transcendent 5MP Indoor/Outdoor 4-IN-1 HDA Motorized Varifocal Dome Camera with Matrix IR
- 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor
- NDAA Compliant
- HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H Video Output
- 2.8-12mm Motorized Varifocal Lens
- 3 Matrix IR with up to 100’ IR Range
- Digital Wide Dynamic Range (D-WDR)
- True Mechanical Day/Night function by ICR
- Digital DNR Noise Reduction
- IP67 Weather Resistance & IK10 Impact Resistance Rating
- Supports Control over COAX (COC)
- Up to 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2), Pendant Mount (VT-TPDMT-A2),
- 3 Year Warranty
Specifications:
- Image Sensor 1/2.7” 5.0 Megapixel Progressive Scan CMOS Sensor
- NDAA Compliant Yes
- Signal System PAL / NTSC
- Effective Pixels 2560 x 1936
- Resolution HD-TVI & AHD: 5MP / CVI: 4MP / CVBS: 960H
- Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Frame Rate 5MP@20fps, 4MP@30fps
- Lens 2.8~12mm Motorized Varifocal Lens
- Day/Night True Day / Night by ICR
- Min. Illumination Color: 0.01 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
- IR LEDs 3 Matrix IRs
- IR Distance Up to 100’
- S/N Ratio ≥52dB (AGC Off)
- Wide Dynamic Range (WDR) D-WDR
- Other Features AGC, Mirror, Sharpness, Smart IR, Image Setting, Defect Correction
- Digital Noise Reduction Digital DNR
- White Balance Auto (AWB)
- Compensation Backlight, Lens Shading, Highlight
- Control over COAX (COC) YES
- Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
- Power Input 12VDC
- Power Consumption (12VDC) IR Off: 100mA / IR On: 500mA (<1W / <6W)
- Weather Resistance IP67
- Impact Rating IK10
- Operation Conditions -22° F~140° F / < 95% Humidity
- Weight (Net) 29.38oz / 1.83 lbs. / 830g
- Dimensions Dia × H 5.56” × 3.94” (141 × 100mm)
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 5.0 MegaPixel resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’ depending on cable characteristics and integrity.
Accessories:
- VT-TJB010: Junction Box for Cable Management for use with NEW DESIGN Transcendent Motorized HDA Vandal Domes – Ivory
- VT-TWMT-A2: Wall Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
- VT-TPDMT-A2: Pendant Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
- VT-TFMT-L2: Semi Flush Ceiling Dome Mount For Use w/Large Motorized Vandal Dome – NEW DESIGN FOR HDA Domes – Ivory
- VT-TCNMT: Universal Transcendent Corner Mount Adapter – reqs. VT-TWMT-A2 + VT-TJB010
- VT-TPLMT: Universal Transcendent Pole Mount Adapter – reqs. VT-TWMT-A2 + VT-TJB010
Configurations:
- VTD-THD5RM: 5MP 20fps TVI/AHD/CVI/CVBS Motorized Varifocal Vandal Dome Camera w/3 Matrix IRs w/ up to 100′ IR Range, 2.8-12mm, IP67/IK10, Metal Housing, 12VDC
- VTD-THD5RMB: 5MP 20fps TVI/AHD/CVI/CVBS Motorized Varifocal Vandal Dome Camera w/3 Matrix IRs w/ up to 100′ IR Range, 2.8-12mm, IP67/IK10, Metal Housing, 12VDC – Charcoal
