VTC-TNT4RFAD-2

Transcendent 4 MegaPixel Fixed IP WDR Active Deterrence Turret Camera

• 1/3” 4.0 MegaPixel CMOS Image Sensor
• Up to 30fps live view @ 4 MegaPixel (2592×1520)
• 2.8mm Fixed Iris Lens

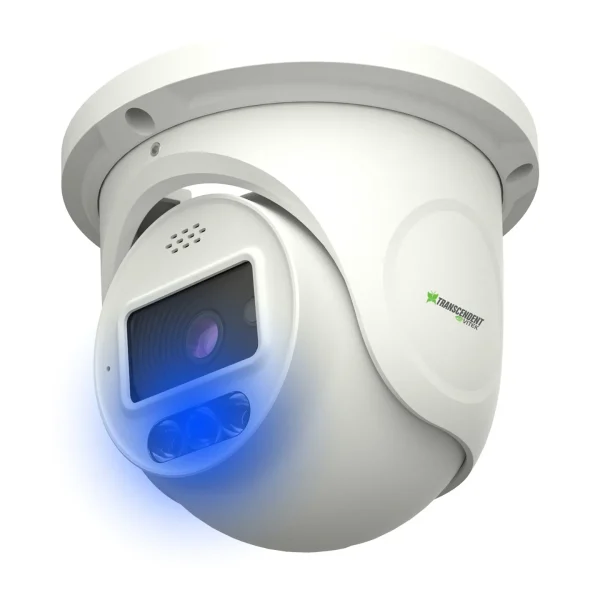

• Alternate Flashing Red + Blue Warning Lights & User-Defined Warning / Command Voice Import
• Matrix IR with up to 165’ Night Vision Range
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• Triple Streaming: H.265+, H.264+ & MJPEG Compression
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Backlight, Highlight Compensation, DeFog, Hardware Reset, ROI
• Programmable Analytics including Line Crossing Detection, Region Intrusion, Entrance / Exiting Detection (All by Human / Vehicle
  Classification), Abnormal Video Signal Detection (Scene Change, Video Cast & Video Blur)
• 1 Ch. Audio In + Built-in Mic + Built-in Speaker*
• 1 Ch. Alarm In + 1 Ch. Alarm Out
• Built-in MicroSD Card Slot for Local Recording (up to 256GB)
• Smart Alarm: Motion Detection, Sensor Alarm, SD Card Error / Full, IP Address Conflict, Cable Connection
• IP66 Weather Resistance
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty

Specifications:

• Image Sensor 1/3” 4.0 MegaPixel Progressive Scan CMOS
• Image Size 4 MegaPixel (2592 × 1520)
• Resolution 4MP(2592×1520), 3MP(2304×1296), 1080P, 720P, D1, CIF(480 × 240)
• Min. Illumination 0.005lux@F1.6, AGC ON, 0 lux with LED ON
• Lens 2.8mm Fixed Iris Lens – M12 Lens Mount, FOV H: 100.4° V: 68° D: 108°
• Day / Night True Day / Night by ICR
• Night Vision / Range 2 Matrix IRs / Up to 165’
• Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG [Triple Streaming]
• Audio Compression G.711A / G.711U
• Main-Stream 4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps, 50Hz: 1~25fps)
• Sub, Third Streams 720P/D1/CIF(60Hz:1~30fps/50Hz:1~25fps), D1/CIF/480×240(60Hz:1~30fps/50Hz:1~25fps)
• Bit Rate / Type 64 Kbps ~ 8 Mbps / VBR, CBR
• Wide Dynamic Range 120dB Super WDR
• Other Features Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
• Digital Noise Reduction XD-DNR (3D-DNR & 2D-DNR)
• Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software/browser
• Advanced Analytics Line Crossing Detection, Region Intrusion, Entrance / Exiting Detection [All by Human / Vehicle
  Classification], Abnormal Video Signal Detection (Scene Change, Video Cast & Video Blur)
• Smart Alarm Motion Detection, SD Card Error, SD Card Full
• Region of Interest (ROI) Each ROI to be Configured Separately
• Audio 1 Ch. Audio In + Built-in MIC + Built-in Speaker*
• Alarm 1 Ch. Alarm Input, 1 Ch. Alarm Output

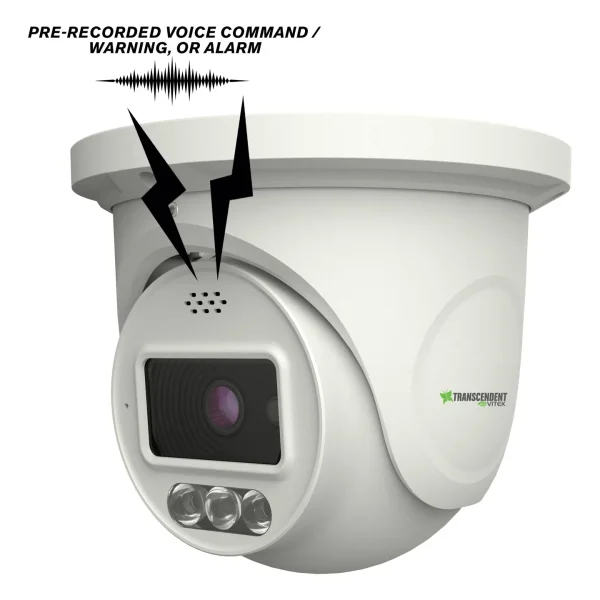

• Sound and Light Warning YES: Alternating Red and Blue Flashing Lights + Speaker with User-Defined Warning Voice Import
• Local Storage Built-in MicroSD Card Slot (up to 256GB)
• Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
• Supported Browsers IE or Edge in IE mode
• Connection Protocol ONVIF
• Ingress Protection IP66
• Power Input 12VDC / PoE
• Pwr Consumption (PoE) <12.5W
• Pwr Consumption (12VDC) 550mA (LEDs Off) / 1100mA (LEDs On)
• Working Environment -22° ~140°F (-30°~60°C)   / < 95% Humidity
• Weight (GROSS) 22.93 oz. / 1.43 lbs. / 650g, 28.22 oz / 1.76 lbs / 800g
• Dimensions (Dia × H) 4.29” × 5.12” (109 × 130mm)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• The Transcendent 4 MegaPixel Active Deterrence Cameras employ revolutionary multi-layer security features to audibly warn and or ward off intruders or trespassers in the act, bringing more advanced perimeter protection and real-time deterrence to nearly any security application. Our advanced video structure technology identifies humans, vehicles, and 2-wheeled transportation, while avoiding false alarms such as passing animals, leaves and rain.

Accessories:

• VT-TJB01: Junction Box for Cable Management for use with Select Transcendent Bullet and Turret Style Cameras
• VT-TJB021: Optional Junction Box for use with Select Transcendent Motorized Turrets and Domes
• VT-TWMT-4: Optional Wall Mount for use with Transcendent Motorized Turrets
• VT-TPDM-2: Mount Post Adapter – Requires VT-TJB01
• VT-TPDM-3: Pendant Mount Post Adapter – Requires VT-TJB021
• VT-TPLMT: Universal Transcendent Pole Mount Adapter
• VT-TCNMT: Universal Transcendent Corner Mount Adapter

Configurations:

• VTC-TNT4RFAD-2

4 MegaPixel H.265 30fps Active Deterrence Turret Camera – Fixed 2.8mm w/ Blue & Red Warning Lights Triggered by AI Analytics, 165′ IR Range, 1 Ch. Audio + Speaker w/ Voice Command or Alarm, MicroSD Card Support (256GB), Metal Housing, 12VDC/PoE, IP66 – Ivory
