VTC-TNT8RFEA-2

Transcendent 8MP Indoor/Outdoor WDR IP Fixed Turret Camera with Matrix IR

• 1/2.8” 8.0 MegaPixel (4K) CMOS Image Sensor
• NDAA Compliant
• 8MP (3840 × 2160) (1~20fps), 6MP (3072 × 2048), 5MP (2592 × 1944), 720P (1280 × 720), D1, CIF, 480 × 240 (1~30fps)
• 2.8mm Fixed Lens
• Matrix IR (up to 100’ IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Programmable Analytics: Region Intrusion Detection, Scene Change Detection, Line Crossing
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Wall Mounts (VT-TWMT-3), Junction Boxes (VT-TJB01, VT-TJB08), and Pendant Mounts, (VT-TPDM-2) Available
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty

Specifications:

• Image Sensor 1/2.7” 8.0 Megapixel [4K] Progressive Scan CMOS
• Image Size 8 MegaPixel (3840 × 2160)
• Resolution Up to 20fps @ 8MP (3840 × 2160), 6MP (3072× 2048 ), 5MP (2592 ×1944 ), 720P (1280 × 720), D1, CIF, 480 × 240
• Min. Illumination 0.02 lux @ F1.6, AGC ON; 0 lux with IR, 0.01lux@F1.2, AGC ON; 0 lux with IR
• Electronic Shutter 1s ~ 1 / 100000s
• Lens 2.8~12mm Motorized Varifocal Lens
• Day/Night True Day/Night by ICR
• IR LEDs 1 Matrix IR
• IR Distance Up to 100‘
• Video Compression H.265+ / H.265 / H.264+ / H.264 /MJPEG
• Audio Compression G.711A / G.711U
• Main Stream 8MP [4K] (1~20fps) / 6MP / 5MP / 720P / D1 / CIF / 480 x 240 (1~30fps)
• Sub Stream, Third Stream 60Hz: 720P/D1/480 × 240(1~30fps), 60Hz: D1/CIF/480 × 240 (1~30fps)
• Bit Rate / Type 64 Kbps ~ 12 Mbps / VBR + CBR
• WDR 120dB Super WDR
• DNR 3D-DNR
• Backlight Compensation Yes
• Highlight Compensation Yes
• Defog Yes
• Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; Adjustable through client software or browser
• Analytics Region Intrusion, Scene Change Detection, Line Crossing, Video Blur, Video Color Cast Detection
• Smart Alarm Motion Detection, SD Card Error, SD Card Full
• General Functions Watermark, IP Filter, Video Mask, Illegal Login Lock
• Region of Interest (ROI) Each ROI to be configured separately
• Hardware Reset Yes
• Analog Video Output No
• Audio 1 Ch. Audio In + Built-in Mic*
• Local Storage Built-in Micro SD card slot up to 256GB
• Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
• Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab, and Edge in IE mode
• Connection Protocol ONVIF
• Weather Resistance IP67 Weather Resistance
• Power Input 12VDC / PoE
• Power Consumption 12VDC, PoE 350mA (LEDs Off) / 625mA (LEDs On), < 7.5W
• Working Environment -22~140° / < 95% Humidity

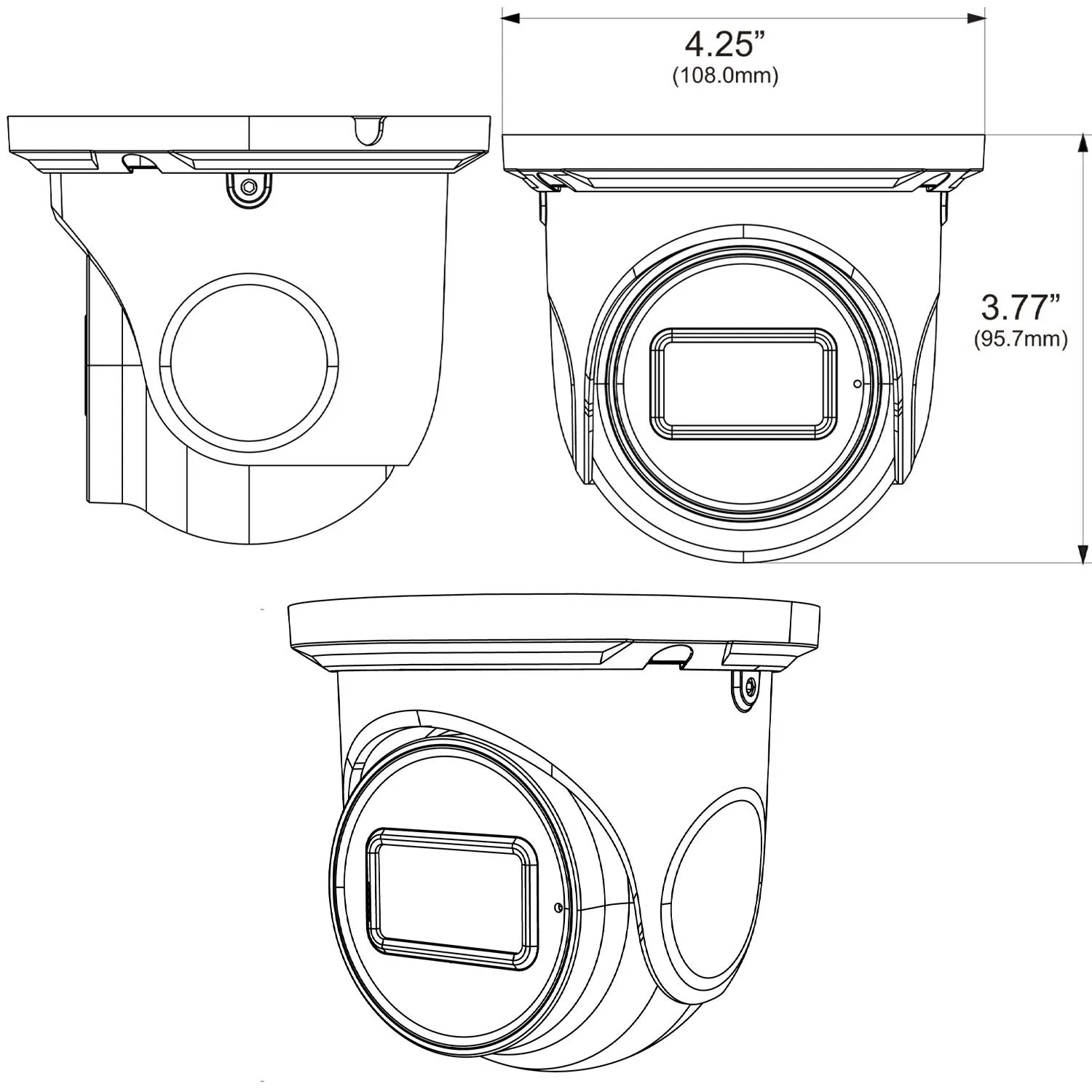

• Weight Net (Shipping), Dimensions Dia × H 17.28oz / 1.08lb / 490g (20.81oz / 1.30lb / 590g), 3.77 × 4.25” [95.7 × 108mm]

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• Transcendent Series NDAA Compliant High Definition 8 Megapixel [4K] IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

Accessories:

• VT-TJB08: Junction Box for Cable Management for use with Select Transcendent Bullet and Turret Style Cameras

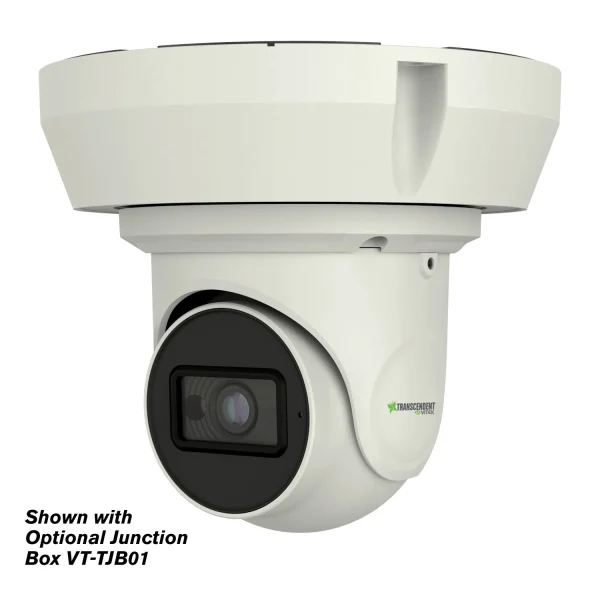

• VT-TJB01: Junction Box for Cable Management for use with Select Transcendent Bullet and Turret Style Cameras
• VT-TWMT3: Compact Wall Mount for use with Fixed Vandal Dome and Turret Cameras
• VT-TPMD-2: 10″ Pedestal/Pendant Mount for Large Turret Cameras (Requires VT-TJB01)
• VT-TPLMT: Universal Transcendent Pole Mount Adapter (Requires J-Box VT-TJB08) – Ivory
• VT-TCNMT: Universal Transcendent Corner Mount Adapter (Requires J-Box VT-TJB08) – Ivory

Configurations:

• VTC-TNT8RFEA-2

8 MegaPixel [4K] H.265 20fps Fixed Turret / Ball Camera 1 Matrix IR w/ 100′ Range, Built In Mic, Programmable Analytics, 2.8mm Lens, Metal Housing, 12VDC/PoE, IP67, Ivory

• VTC-TNT8RFEAB-2

8 MegaPixel [4K] H.265 20fps Fixed Turret / Ball Camera 1 Matrix IR w/ 100′ Range, Built In Mic, Programmable Analytics, 2.8mm Lens, Metal Housing, 12VDC/PoE, IP67, Charcoal Grey

Downloads:

• VTC-TNT8RFEA-2: Spec Sheet
• VTC-TNT8RFEA-2: Quick Start
• Transcendent VMS for Windows: Manual
• Transcendent VMS for Mac OSX: Manual
• Transcendent IP Tool 3.0
• Transcendent VMS for Windows: 32 Bit
• Transcendent VMS for Windows: 64 Bit
• Transcendent VMS for macOS
• Control4 Streaming Driver for Transcendent IP Cameras
