Name: VTC-TNB4LPRN
SKU: VTC-TNB4LPRN
Availability: InStock

Transcendent Series 4 MegaPixel License Plate Recognition WDR IP Motorized Bullet Camera

Suggested Replacement Model: VTC-TNB4LPRN-A
1/1.8” 4 MegaPixel Progressive Scan CMOS Sensor
Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
Up to 30fps live view @ 4 MegaPixel (2592 × 1520)
8~32mm @F1.6 Motorized Varifocal Lens
Matrix IR (up to 325’ IR Range)
True Wide Dynamic Range (120dB)
True Mechanical Day / Night function by ICR
XD-DNR (3D & 2D-DNR) Noise Reduction
Intelligent Analytics: License Plate Recognition, Vehicle Type Detection, Video Exception Detection
10,000 Vehicle Plate Database
0-75m/h (120km/h) Capture Speed (Dependent on Installation)
Overlay Options: Time, Location, License Plate Information
Triple Streaming: H.265+ / H.265 / H.264+ / H.264 / MJPEG
1 Ch. Audio In + 1 Ch. Audio Out*
1 Ch. Alarm In + 1 Ch. Alarm Out, 1 Ch. CVBS
Supports Wiegand Protocol for Advanced Access Control Integrations
Remote Viewing via VMS, Web Browsers, and iOS & Android Apps
MicroSD Card Slot for Local Recording (256GB)
IP67 Weather Resistance
Wall Mount Included, Optional Mounts: Junction Box VT-TJB01 [See Additional Mounting Options Below]
12VDC/24VAC & PoE (Power over Ethernet) Operation
3-Year Warranty

Specifications:

Image Sensor 1/1/8” 4.0 Megapixel Progressive Scan CMOS
Image Size 4 MegaPixel (2560 × 1520)
Electronic Shutter Manual or Auto, Manual: 1 / 1 s ~ 1 / 100000s
Resolution 4 MP (2592 × 1520) / 3 MP (2304 × 1296) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1/CIF (480 × 240)
Min. Illumination 0.001 lux@F1.6, AGC ON, 0 lux with IR
Lens 8~32mm Mortorized Varifocal @F1.6
FOV Horizontal: 41°~15.5°, Vertical: 23°~9.5°, Diagonal: 46.5°~18°
Lens Mount Integrated
Recommended LPR Distance 23~99′ (7-30M)
Other Features BLC, HLC, Defog
WDR 120dB True WDR
DNR XD DNR (3D-DNR / 2D-DNR)
S/N Ratio >50Db
Angle Adjustment Pan: 0°~360°, Tilt:0°~90°, Rotation: 0°~360°
IR Matrix (2)
IR Distance 325′
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Main Stream 4MP/2K/3MP/1080P (60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps)
HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)
Sub Stream 720P/D1/CIF ( 60Hz:1 ~ 30fps, 50Hz: 1 ~ 25fps )
Third Stream D1/CIF ( 60Hz:1 ~ 30fps, 50Hz: 1 ~ 25fps )
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G.711A / G.711U
Image Settings ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Mirror, Image Flip, Noise Reduction – Image Settings Adjustable through Client Software or Web Browser
ROI Each ROI to be configured separately
Network 100M RJ 45
Video Output CVBS Output (BNC × 1)
Audio 1CH Audio Input, 1CH Audio Output*
Storage Built-in microSD Card Slot – up to 256GB, Network Remote StorageReset YES
Alarm 1CH Alarm Input, 1CH Alarm Output
RS485 YES
Wiegand YES – Supports Wiegand Protocol for Advanced Access Control Integrations [In or Out Configurable]
Remote Viewing VMS / Web Browser / Mobile (iOS/Android)
Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab, Edge in IE Mode
Online Connection Support Simultaneous Monitoring for up to 10 Users, Support Multi-stream Real Time Transmission
Interface Protocol ONVIF
Network Protocol DP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, HTTP POST,802.1x, UPnP, HTTPs, QoS
Smart Alarm Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection
Programmable Analytics License Plate Recognition, Vehicle Type Detection, Video Exception Detection
General Functions Watermark, Video Mask, Operational Diagnostic [Heartbeat], Corridor Mode
Security Video Encryption, Firmware Encryption, HTTPs Encryption, Configuration Encryption, Illegal Login Lock, IP Address Filtering, 802.1x Authentication, Basic and Digest Authentication for HTTP/HTTPs
POE (Standard) YES (IEEE802.3af)
Ingress Protection IP67
LPR Snapshot Overview and Cutout of Plate for Picture
License Plate Database Whitelist up to 10,000
OSD Features Snapshot Time, Location, License Plate Information
Capture Speed Range 0-70m/h (0-120km/h) *Dependent on Installation
Power Supply DC12V/AC24V/PoE
Power Consumption <12W
Operating Environment -22°F~140°F (-30°C ~ 60°C) Humidity: less than 95 % (non-condensing)
Storage Environment -22°F~149°F (-30°C ~ 65°C) Humidity: less than 95 % (non-condensing)
Dimensions 10.96” × 3.95” × 3.49” (278.3mm × 100.2mm × 88.7mm)
Weight Net (Shipping) 2.59lbs / 1176g (3.03lbs / 1376g)
Installation Options Ceiling Mounting, Wall Mounting
Certificates CE, FCC

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

Transcendent Series NDAA Compliant 4 MegaPixel H.265+ WDR Bullet Camera specializing in License Plate Recognition. Featuring an 8~32mm Motorized Zoom Lens and Starlight Technology, these simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via VMS, Web Browsers, and iOS & Android Apps.

Accessories:

VT-TJB01: Junction Box for Cable Management for use with Select Transcendent Cameras
VT-TPLMT: Universal Transcendent Pole Mount Adapter

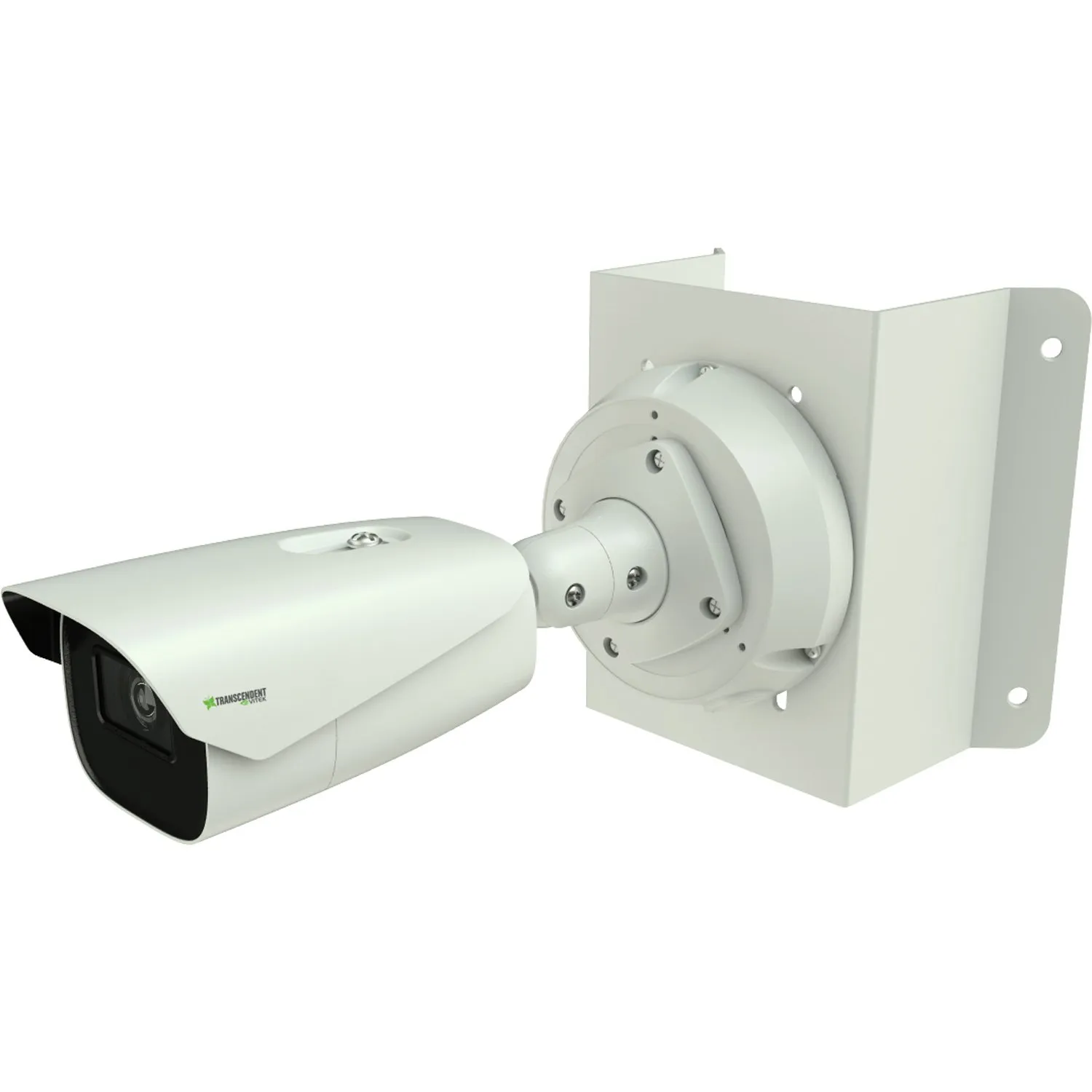

VT-TCNMT: Universal Transcendent Corner Mount Adapter

Downloads:
