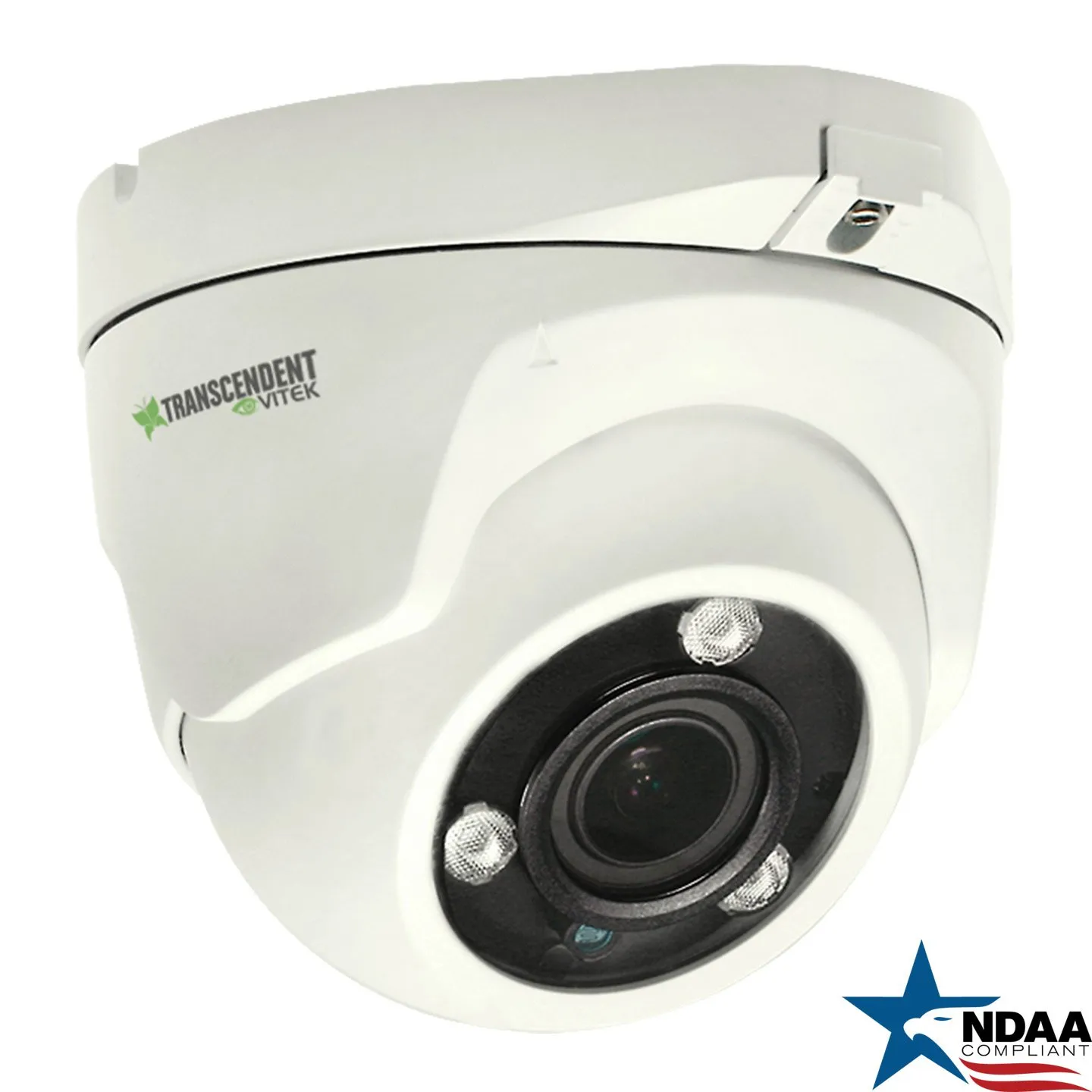

5 MegaPixel 4-in-1 Indoor / Outdoor HDA Dual Voltage (12VDC/24VAC) Motorized Varifocal Turret Camera
- 1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
- 20fps live view @ 2592 x 1944
- True Day/Night by IR Cut Filter
- HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
- Motorized 2.7~13.5mm MegaPixel IR Corrected Auto Focus Varifocal Lens
- 3 Integrated High Power Dynamic IR LEDs with up to 135’ IR Range
- XD-DNR Noise Reduction (3D & 2D-DNR)
- True Wide Dynamic Range (WDR)
- Auto White Balance
- IP66 Weather Resistance
- Supports Control over COAX (CoC)
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- Optional Junction Box Available (VT-TJB04)
- 12VDC / 24VAC Dual Voltage Operation
- NDAA Compliant
- 3 Year Warranty
Specifications:
- Image Sensor 1/2.8” 5.69 Megapixel Sony® Starvis™ Progressive Scan CMOS Sensor
- NDAA Compliant Yes
- Signal System PAL/NTSC
- Effective Pixels 2592 (H) × 1944 (V)
- Resolution / Video Output Up to 5MP
TVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps
AHD: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps, 5MP@12.5fps, 5MP@20fps
CVI: 1080P@25fps, 1080P@30fps, 4MP@25fps, 4MP@30fps - Lens Motorized 2.7~13.5mm Motorized Varifocal Lens
- Day/Night True Day/Night by ICR (Extern, Color, B&W, Auto)
- Min. Illumination 0.001 Lux @ f2 (B/W) / 0.1Lux @ F2.0 (Color) / 0 Lux (IR ON)
- IR LEDs 3 x High Power Dynamic IR LEDs
- IR Distance Up to 135’
- DSS (Sens-Up) OFF / X2 ~ X32
- S/N Ratio ≥50dB (AGC Off)
- WDR True Wide Dynamic Range (WDR)
- Digital Noise Reduction XD-DNR (2D-DNR & 3D-DNR)
- White Balance Auto / Present / External / Manual
- BLC Adjustable
- Defog Adjustable
- Privacy Mask 16 Programmable Areas
- Motion Detection 4 Programmable Areas
- Control over COAX (CoC) YES
- Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
- Power Input Dual Voltage: 12VDC / 24VAC
- Power Consumption <6.5W
- Power Consumption (12VDC) 600mA (IR ON) / 300mA (IR OFF)
- Power Consumption (24VAC) 300mA (IR ON) / 150mA (IR OFF)
- Weather Resistance IP66
- Storage Temperature -4°~122°
- Working Conditions 14°~122° / Humidity 90% or less
- Weight 17.99oz / 1.12lb / 510g
- Dimensions 2.97” x 3.07” x 11.17” (75.4 x 78.2 x 283.7mm)
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Accessories:
- VT-TJB04: Optional Junction Box for Cable Management for use with Select Transcendent Dual Voltage Cameras
- VT-TR4VPK: Video & Power Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1000’
- VT-TR4K: Passive Video Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1440’
