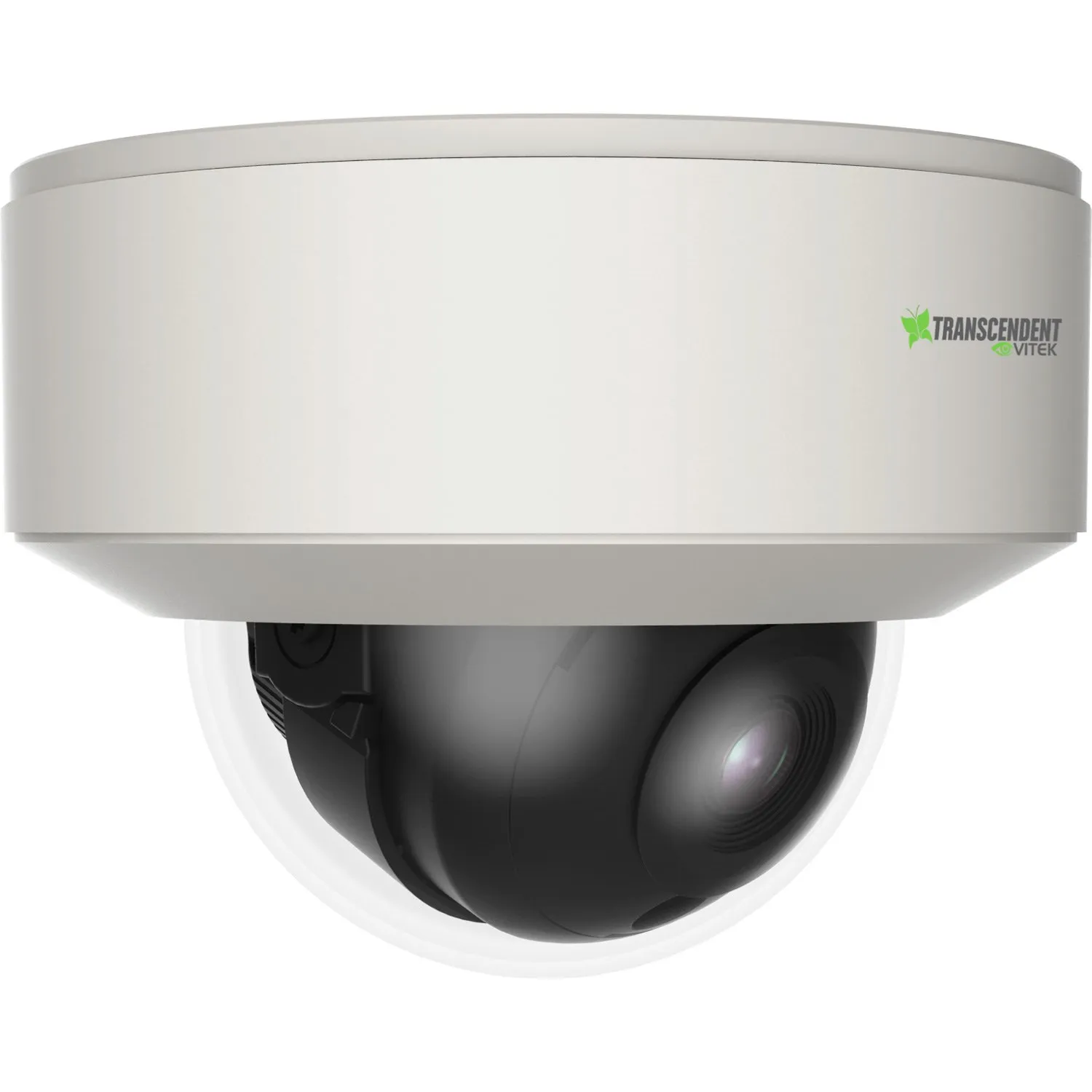

8 MegaPixel (4K) Advanced A.I. Fixed IP Dome Camera
- 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor
- Up to 20fps live view @ 8 MegaPixel (3840×2160), 30fps @ 5/4/3MP/1080/720p/D1/CIF/480×240
- 2.8mm Fixed Iris Lens
- Available with 2.8mm Fixed Lens in Ivory or Charcoal: VTD-TND8RFA3-2 (Ivory w/ 2.8mm), VTD-TND8RFA3B-2 (Charcoal w/ 2.8mm)
- Supports Still Image Recording Function
- Matrix IR (up to 100’ IR Range)
- True Wide Dynamic Range (120dB)
- True Mechanical Day/Night function by ICR
- XD-DNR (3D & 2D-DNR) Noise Reduction
- GEN IV Advanced Analytics: Intrusion Detection, Line Crossing, Target Counting (All by Human / Motor Vehicle Classification), Face A.I., Video Blur, Video Color Cast Detection, Abnormal Video
- Face A.I. 4.0(Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
- 1 Ch. Audio In + Built-in Mic*
- 1 Ch. Alarm In + 1 Ch. Alarm Out
- H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
- ONVIF Compliant
- MicroSD Card Slot for Local Recording (Up to 256GB)
- IP67 Weather Resistance + IK10 Impact
- Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3) and In-Ceiling Semi Flush Mount (VT-TFMT-S) AvailableSee other mounting options below and at left in the image gallery
- 12VDC & PoE (Power over Ethernet) Operation
- 3-Year Warranty
Specifications:
- Image Sensor 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor
- NDAA Compliant Yes
- Image Size 8 MegaPixel (3840×2160)
- Resolution 8MP(3840×2160 ), 6MP(3072×2048 ), 5MP(2592×1944), 4MP(2592 × 1520 ), 4MP(2560 × 1440 ), 3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P(1280 × 720), D1, CIF, 480 × 240
- Min. Illumination 0.01 lux @ F1.2, AGC ON; 0 lux with IR, 0.02 lux@F1.6, AGC ON; 0 lux with IR
- Lens 2.8mm Fixed Iris Lens
- Still Image Recording Yes, Supports Still Image Recording Functions
- Day/Night True Day/Night by ICR
- IR LEDs / Distance 1 Matrix / 100’
- Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Audio Compression G.711A / G.711U
- Main-Stream 60Hz: 8/6/5/4MP/2K/3MP/1080P/720P(1~30fps), 50Hz: (1~25fps),
HFR:1080P 720P(60Hz: 1 60fps; 50Hz: 1~50fps) - Sub / Third Stream 1080P/720P/D1/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps), 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
- Bit Rate 64Kbps ~ 12Mbps
- Wide Dynamic Range (WDR) 120dB Super WDR
- Other Features Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
- Digital Noise Reduction (DNR) XD-DNR (2D-DNR & 3D-DNR)
- Quality VBR (Five Levels of Adjustment) / CBR (Adjustable)
- Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
- GEN IV Advanced Analytics Intrusion Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification], Face Detection, Video Blur, Video Color Cast Detection, Abnormal Video
- Face A.I. 4.0 Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
- Smart Alarm Motion Detection, SD Card Error, SD Card Full
- Region of Interest (ROI) Each ROI to be Configured Separately
- Network RJ45
- Audio 1 Ch. Audio In + Built-in Mic*
- Local Storage MicroSD Card Slot (Up to 256GB)
- Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
- Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab
- Connection Protocol ONVIF
- Outdoor Protection IP67 Weather Resistance + IK10 Impact
- Power Input 12VDC / PoE
- Power Consumption 12VDC / PoE 350mA (LEDs Off), 600mA (LEDs On) / < 9W
- Working Environment -22° ~140° / < 95% Humidity
- Weight 22.22 Oz. / 1.39 Lbs. / 630g
- Dimensions 4.57” × 3.58” (116mm × 91mm) Dia × H
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series NDAA Compliant High Definition 8 Megapixel IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.
Accessories:
- VT-TJB03A: Junction Box for Cable Management for use with Select Transcendent Vandal Domes / (Charcoal)
- VT-TWMT3: Compact Wall Mount for use with Fixed Vandal Dome and Turret Cameras / (Charcoal)
- VT-TPDM-1: (VT-TJB03A Req’d) Pendant Mount for use with select Transcendent Vandal Dome Cameras / (Charcoal)
- VT-TFMT-S: Semi-Flush Mount for use with Fixed Lens Vandal Dome Cameras
- VT-TPLMT: (VT-TJB03A Req’d) Universal Transcendent Pole Mount Adapter – Ivory
- VT-TCNMT: (VT-TJB03A Req’d) Universal Transcendent Corner Mount Adapter – Ivory
Configurations:
- VTD-TND8RFA4-2
NDAA Compliant 8 MegaPixel H.265+ 20fps Fixed Vandal Dome Camera, Matrix IR w/ up to 100′ IR Range, Advanced Analytics, 3.6mm, Metal Housing, 12VDC/PoE, IP67 + IK10
- VTD-TND8RFA4B-2
NDAA Compliant 8 MegaPixel H.265+ 20fps Fixed Vandal Dome Camera, Matrix IR w/ up to 100′ IR Range, Advanced Analytics, 2.8mm, Metal Housing, 12VDC/PoE, IP67 + IK10
Downloads:
- VTD-TND8RFA4-2: Spec Sheet
- VTD-TND8RFA4-2: Quick Start
- Transcendent GEN IV IP Camera Manual
- Transcendent VMS for Mac OSX: Manual
- Transcendent VMS for Windows: Manual
- Transcendent VMS for macOS
- Transcendent VMS for Windows: 32 Bit
- Transcendent VMS for Windows: 64 Bit
- Transcendent IP Tool 3.0
- Control4 Streaming Driver for Transcendent IP Cameras
