VT-SVRM10-A

VITEK All-in-One Management Server for Security and Surveillance Applications

DEVICE ACCESS

• Vitek protocol, ONVIF protocol, standard RTSP, SDK
• Add devices by manually entering IP address, domain name or IP range, or by auto search / auto report
• Set the network of the devices before quickly adding them

RESOURCE MANAGEMENT

• Channel (or camera) group management and device area management
• Centralized management of decoding devices, encoding devices and platform services

DEVICE CONFIGURATION

• Basic configuration and user management of devices
• Date, time / time zone, network, email and DDNS configuration of devices
• Device HDD information retrieval
• Multi-OSD setup of one channel
• Set cameras’ ROI, video mask and motion detection
• Supports intelligent analytics
• Adjust camera’s resolution, frame rate, VBR/CBR, image quality and bit rate settings
• Configure camera’s brightness, contrast, saturation, hue
• Multiple devices’ parameters can be set simultaneously
• Supports configuring record plan for storage devices

USER MANAGEMENT

• Multi-user talk
• User MAC address binding
• User lock
• Different users and permission
• Permission based on resources and operation
• Permission can be assigned to each channel (or camera) of the device

SNAPSHOTS

• Snapshots in live view and playback mode
• Trigger camera snapshot

LIVE VIEW

• Multi-screen display mode: 1/4/6/8/9/10/16/117/21/25/33/36/49/64/84/100 standard disp. mode
• 2/4/6/7/9/12/16/24/36/48 wide screen display mode
• Customized screen display mode
• Corridor mode
• Add fish eye and panoramic cameras
• Channel group auto-switch
• Stream self-adaptation and one-key stream switch
• Stream copy
• Multi-monitor display
• Instant playback
• Decoding with hardware
• Device’s smart area and result display

TWO WAY TALK AND BROADCAST

• Remote listening
• Two-way talk
• 8K or 16K audio sampling rate
• Multiple audio formats: G.711 a-law, G.711 u-law, G.722.1, G.726, ACC, MP2L2, PCM
• Voice broadcast and audio file customization

PTZ CONTROL

• PTZ remote cntrl incl. preset, track and cruise calling and settings
• Zoom in / out and focus + / –
• PTZ protocol configuration
• 3D positioning control (a target can be quickly positioned and captured by box selection)
• Scheduled tasks, one-button guard and one-button cruise configurations

RECORD PLAYBACK AND BACKUP

• Multi-channel simultaneous and asynchronous playback
• Multiple record source playback
• Multi-window playback
• Playback by channel, time slice, time, tag and event search
• Playback by frame, dragging the progress bar, fast forward or slow speed
• Record backup: manual backup, scheduled backup, backup by channel, time, tag and event search: supports cutting recordings and backing up in the playback interface

ALARM

• Multiple alarm types: Motion, sensor, smart-event linkage, line crossing counting linkage, face match linkage
• Multiple alarm linkages: Platform recording, client message pop-up, client preview, audio, decoding on TV Wall, device recording, device snapshot, local recording, local snapshot
• Arming or disarming.
• SOP (alarm handling process) configuration
• Alarm information export by time period
• Manual alarm output

DECODING ON TV WALL

• Works w/ decoders / matrix to control multiple video walls
• Supports 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P
• Supports decoding on TV wall in the audio format of G.722, G.711A, G.711U or ACC
• Live view and playback on TV wall
• 1/4/9/16/25/36 screen mode
• Window merging and splitting, opening window and roaming
• Multiple splicing modes: 1×1, 1×2, 2×1, 2×2, 3×1, 3×2, 3×3,
• 4×1, 4×2, 4×3, 4×4, 4×5, 4×6, 4×7, 4×8
• P-i-P (Picture-in-picture) mode and roaming mode
• Up to 999 plans configurable
• Channel group and plan sequence view
• Plan task configurable
• Triggering decoding on TV wall – customized alarm window (unlimited)
• Notification of offline node

LINE CROSSING COUNTING

• Threshold settings of people / vehicle / bicycle entry / exit
• Daily, monthly people / vehicle / bicycle flow display by chart
• Historical people / vehicle / bicycle counting displayed in a histogram or curve graph and exported to Excel
• Supports single/multi-channel real-time statistics and daily/monthly/yearly statistics via E-map
• Historical data search by single/multi-ch., time period and line crossing: exported to a curve graph, histogram, or Excel

ELECTRONIC MAP

• Supports Picture maps: JPG, BMP, PNG and TIF formats
• Multi-level maps: adding, modifying, moving, deleting hot spots (monitoring points, sensor)
• Layer addition and display as well as self-defined layer
• Alarm linkage, such as icon flickering, video pop-up

FACIAL SURVEILLANCE

• Batch adding and importing face pictures with configurable personal attribute information
• Match boxes of strangers and people from allow and block lists are displayed with different colors.
• Alarm pop-up window after face capture or match
• Image search / playback by face pic (captured or uploaded face pic): all searched pics can be viewed via list or tracked on E-map
• One-key addition of captured pic to the face database in the image search interface
• Face search similarity setting
• One-key face pictures / database export

FACIAL ATTENDANCE

• Configurable Attendance time
• Display employees’ photo and compared time after successful comparison
• Supports multi-screen display mode (1/4/9/16): Facial attendance video can be projected onto a sub-screen
• Attendance record can be viewed and filtered by day, week, month, working day / non-working day / late / leaving early /overtime work / normal work / check-in / lack of check-in
• Displays attendance status and overtime working status in list form, which can be exported to Excel

FACIAL GREETING

• Individually-defined Greeting interface style
• Real-time visitor information display on the client
• VIP visitor’s photo shown on pop-up window of sub-screen and corresponding audio will be broadcast simultaneously
• Single visitor loop play time can be configured in seconds
• Configurable greeting pop-up window quantity, height, duration
• Visitor access records search
• License Plate Recognition camera access
• Total / remaining space display
• Barrier gate control, manual / auto opening
• Historical vehicle entering or exiting information search
• Adding, modifying, deleting vehicle info. and parking permission
• Entrance / exit lane configuration
• Search overstayed parking and self-defined overstaying threshold
• Block list management (add, modify, searching vehicles in block list)

OTHER

• Keyboard control, Overload protection, Operation / maintenance management: Operating, system and alarm logs can be searched and exported by time, type and user

Specifications:

• NDAA Compliant YES
• CPU Intel® Pentium 4405U
• Memory DDR4 8GB
• Graphics Card Integrated Graphics Intel® HD Graphics 510
• Operation System Linux
• Software VITEK Transcendent VMS 2.0
• Decoding Capability 8MP: 4CH, 5MP: 8CH, 4MP: 14CH, 1080P, 33CH: 720P, 36CH: D1(or lower)
• Max. Channel Access 256CH
• Max. Device Access 64 NVRs/FR Servers
• AI Capability Integrated Face Detection IPC Mgmt, Face Match Servers, Face Rec. Terminals, Face Match NVRs, LPR Cameras
• Access Local GUI Access, External Mouse, Keyboard and Monitor, Multi-monitor Display
• Protocol Private protocol, SDK, ONVIF, RTSP,
• Live View Multi-Screen Display Mode, Customized Screen Display Mode, Corridor Mode, Channel Group Auto-switch, Stream Self-adaptation, Manual Record and Snapshot
• Record Playback Search Record by Time Period, Time Slice, Time and Tag, Synchronous / Asynchronous Playback, Record Backup
• Alarm Linkage Triggering Message Popup, Audio, Live View Window, Recording with Tag, Decoding on TV Wall
• PTZ Control Zoom In, Zoom Out, Preset, Cruise, 3D Control
• System HDD mSATA SSD 128GB
• Data HDD NO
• HDMI Output 1CH HDMI @ 4K
• VGA Output 1 VGA @ 1080P
• Audio Output 1CH Line Out
• Two-way Audio 1CH Mic In
• Ethernet Interface 1×RJ45 10M/100M/1000M self-adaptive Ethernet port
• USB Interface 6 USB ports: USB 3.0 × 2 Front Panel, USB 2.0 × 2 Rear panel USB 3.0 × 2 Rear panel
• Wi-Fi 1 × M.2 2230 (Optional)
• Power DC 12V/3A
• Power Consumption ≤36W
• Working Temperature 23~113°F (-5~45°C)
• Storing Temperature -4~158°F (-20~70°C)
• Working Humidity 10%~95%

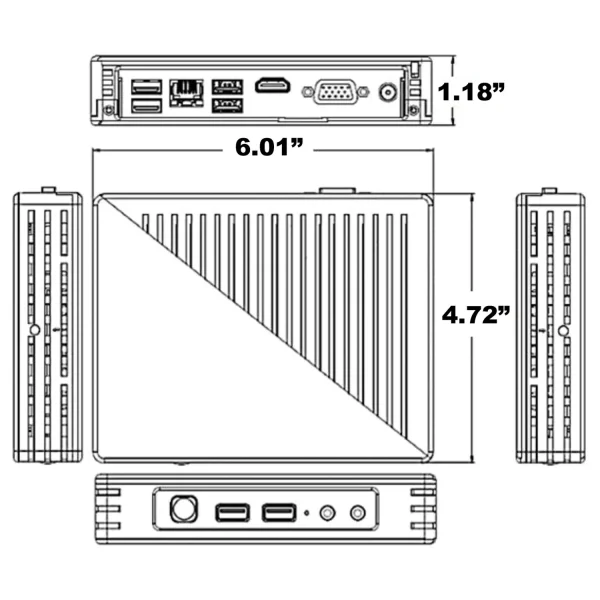

• Dimensions (WxHxD) 6.06 × 4.72 × 1.19” / 154 × 120 × 30mm
• Weight Net, Shipping 1.04, 2.2lbs / (.47, 1kg)

Features:

• The VT-SVRM10-A is an NDAA Compliant management server designed and developed for security surveillance applications, with software that combines management, video preview and Intelligent Analytics. This low cost solution features flexible expansion and a simple set-up, making it ideal for small to mid-sized security systems.
