Transcendent 8MP Indoor/Outdoor 4-IN-1 HDA Motorized Varifocal Vandal Dome Camera with Matrix IR
- 1/2.5” 8 MegaPixel [4K] Progressive Scan CMOS image sensor
- High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS
- 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
- Supports OSD Menu
- 2.8~12mm Motorized Lens, Horizontal FoV: 105.4°~ 36.9° Vertical FoV: 72.9°~21.2° Diagonal FoV: 112.8°~41.9°
- Matrix IR with up to 100’ IR Range
- True Mechanical Day/Night function by ICR
- XD-DNR (2D & 3D) Noise Reduction
- IP67 Weather Resistance + IK10 Impact Rating
- Supports Control over COAX (CoC)
- Over 1500’ HD Video Transmission (Depending on Cable Characteristics and Integrity)
- Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2
[reqs. VT-TJB010]), Pendant Mount (VT-TPDMT-A2 [reqs. VT-TJB010]), and In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available [See Additional Mounting Options Below] - 12VDC Operation
- 3-Year Warranty
Specifications:
- NDAA Compliant YES
- Image Sensor 1/2.5” 8.0 MP Progressive Scan CMOS Sensor NTSC/PAL
- Effective Pixels 3840 x 2160
- Resolution HD-TVI & AHD: 8.0 MegaPixel
- Video Output CVI: 4.0 MegaPixel / CVBS: 960H
- Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Frame Rate 8MP@15fps / 5MP@20fps / 4MP@30fps
- Lens 2.8mm~12mm Motorized Varifocal
- FoV Horizontal FoV: 105.4°~ 36.9° Vertical FoV: 72.9°~21.2° Diagonal FoV: 112.8°~41.9°
- Day/Night True Day/Night by ICR
- Min. IIIumination Color: 0.01 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
- IR LEDs 3 Matrix Style IRs
- IR Distance Up to 100’
- Dynamic (Smart) IR YES
- S/N Ratio ≥52 dB (AGC Off)
- Digital Noise Reduction 3D-DNR
- Auto White Balance YES (AWB)
- Back Light Compensation YES (BLC)
- Control over COAX (CoC) YES
- Other Features Saturation, Sharpness, Contrast, Smart IR, Image Setting, Auto Defect Correction
- Transmission Distance Up to 1500’ (Depending on Cable Characteristics and Integrity)
- Power Input 12VDC
- Power Consumption IR Off: < 2W / IR On: < 5.5W
- Ingress Protection / Impact Rating IP67 / IK10
- Operation Conditions -4°~122°F / 10%~90% Humidity
- Weight (Net, Gross) 29.28oz / 1.83 lb / 830g, 35.49 oz / 2.22 lb / 1006g
- Dimensions 5.56” × 3.94” (141 × 100mm) Dia × H
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 8.0 MegaPixel [4K] resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’ depending on cable characteristics and integrity.
Accessories:
- VT-TJB010: Junction Box for Cable Management for use with Select Transcendent Motorized HD Coax Vandal Domes – Ivory
- VT-TWMT-A2: Wall Mount for Transcendent Large/Motorized Select HD Coax VANDAL DOME – Requires VT-TJB010 – Ivory
- VT-TPDMT-A2: Pendant Mount for Transcendent Large/Motorized Select Transcendent Motorized HD Coax Vandal Domes – Requires VT-TJB010 – Ivory

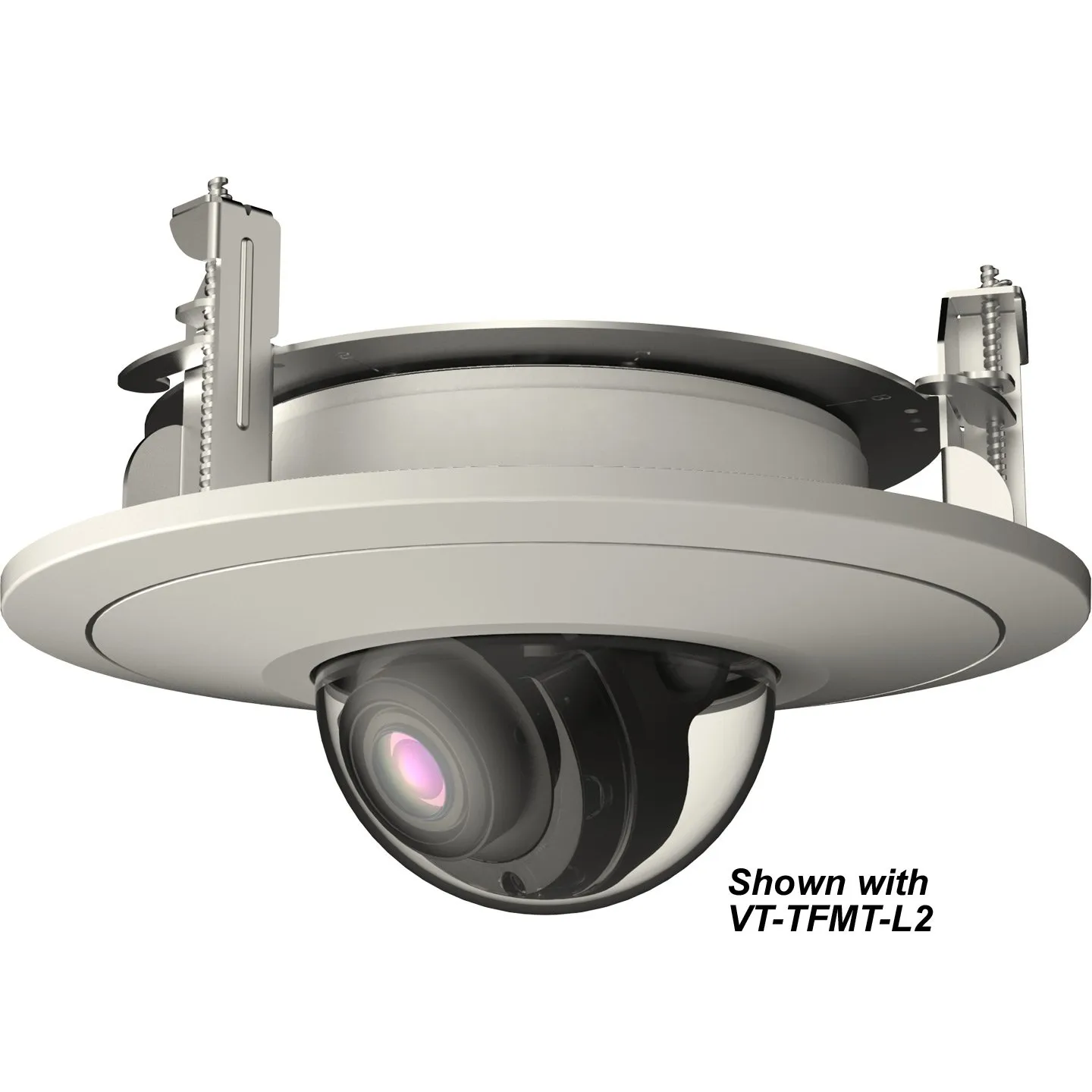

- VT-TFMT-L2: Semi Flush Ceiling Dome Mount For Use w/Large Motorized Vandal Dome – Select Transcendent Motorized HD Coax Vandal Domes – Ivory
- VT-TCNMT: Universal Transcendent Corner Mount Adapter – reqs. VT-TWMT-A2 + VT-TJB010
- VT-TPLMT: Universal Transcendent Pole Mount Adapter – reqs. VT-TWMT-A2 + VT-TJB010
Configurations:
