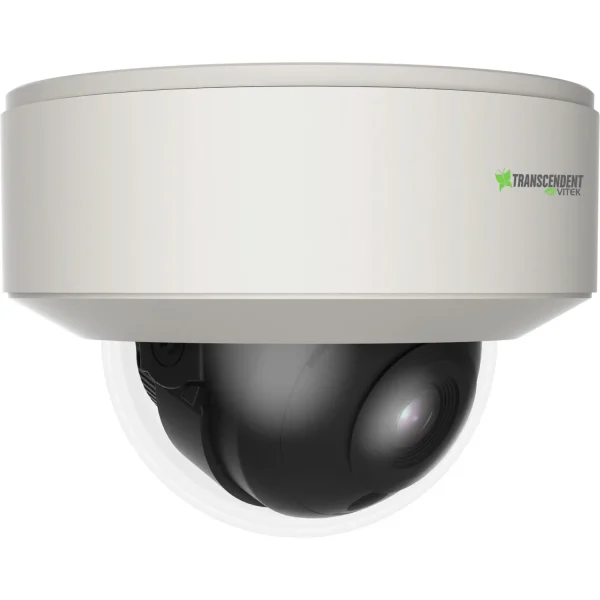

Transcendent 2.0 Megapixel Indoor/Outdoor 4-in-1 HDA Vandal Dome Camera w/16 Covert IR LEDs
- 1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor
- Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
- 2.0 MegaPixel High Definition Analog (HDA): HD-TVI , AHD, CVI / 960H: CVBS: Output
- 3.6mm or 2.8mm Fixed (2.8mm add suffix “-2”) Lens
- 16 Covert IR LEDs with up to 65’ IR Range
- True Wide Dynamic Range (WDR)
- True Mechanical Day/Night function by ICR
- XD-DNR (3D-DNR / 2D-DNR) Noise Reduction
- IP67 Weather Resistance & IK10 Impact Resistance Rating
- Supports Control over COAX
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- Optional Wall Mount (VT-TWMT3) & Junction Box (VT-TJB03A) Mounts Available
- 12VDC Operation
- NDAA Compliant
- 3 Year Warranty
Specifications:
- Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology
- Signal System PAL/NTSC
- Effective Pixels 1920 x 1080
- Resolution HD-TVI / AHD / CVI: 2.0 MegaPixel / CVBS: 960H
- Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Frame Rate 30fps
- Lens 3.6 mm or 2.8mm Fixed (for 2.8mm, add suffix “-2”)
- Day/Night True Day/Night by ICR
- Min. Illumination Color: 0.001 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
- IR LEDs 16 Covert IR LEDs
- IR Distance 65’
- S/N Ratio ≥52dB (AGC Off)
- WDR True WDR
- Other Features AGC, Freeze, Mirror, Sharpness, Smart IR, Motion Detection, Privacy Mask, Auto Defect Correction
- Digital Noise Reduction (DNR) 3D-DNR
- White Balance Auto (AWB)
- BLC, LSC, HLC Backlight, Lens Shading, Highlight
- Control over COAX (COC) YES
- Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
- Power Input 12VDC
- Power Consumption (12VDC) IR Off: 125mA / IR On: 385mA
- Resistance Rating IP67 / IK10
- Operation Conditions -4~122 / 10%~90% Humidity
- Weight 20.50 oz. / 1.25 lbs. / 580g
- Dimensions 4.68” × 3.44” (119mm × 88mm) Dia × H
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- The All New Transcendent Series 2.0 MegaPixel (1080P) 4-In-1 Indoor/Outdoor Cameras offer incredible performance and value delivering 1080P High Definition images over coaxial cable using HD-TVI, AHD, CVI, and CVBS technology. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
Accessories:
- VT-TJB03A: Junction Box for Cable Management for use with Select Transcendent Vandal Domes / (Charcoal)
- VT-TWMT3: Compact Wall Mount for use with Fixed Vandal Dome and Turret Cameras / (Charcoal)
- VT-TPDM-1: (VT-TJB03A Req’d) Pendant Mount for use with select Transcendent Vandal Dome Cameras / (Charcoal)
- VT-TFMT-S: Semi-Flush Mount for use with Fixed Lens Vandal Dome Cameras
- VT-TPLMT: (VT-TJB03A Req’d) Universal Transcendent Pole Mount Adapter – Ivory
- VT-TCNMT: (VT-TJB03A Req’d) Universal Transcendent Corner Mount Adapter – Ivory
- VT-TR4VPK: Video & Power Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1000’
- VT-TR4K: Passive Video Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1440’
Configurations:
- VTD-THD16R2F-2: 2MP Starlight 30fps TVI/AHD/CVI/CVBS Vandal Dome Camera w/16 Covert IR LEDs w/65′ IR Range, 2.8mm Fixed, IP67 + IK10, Metal Housing, 12VDC
