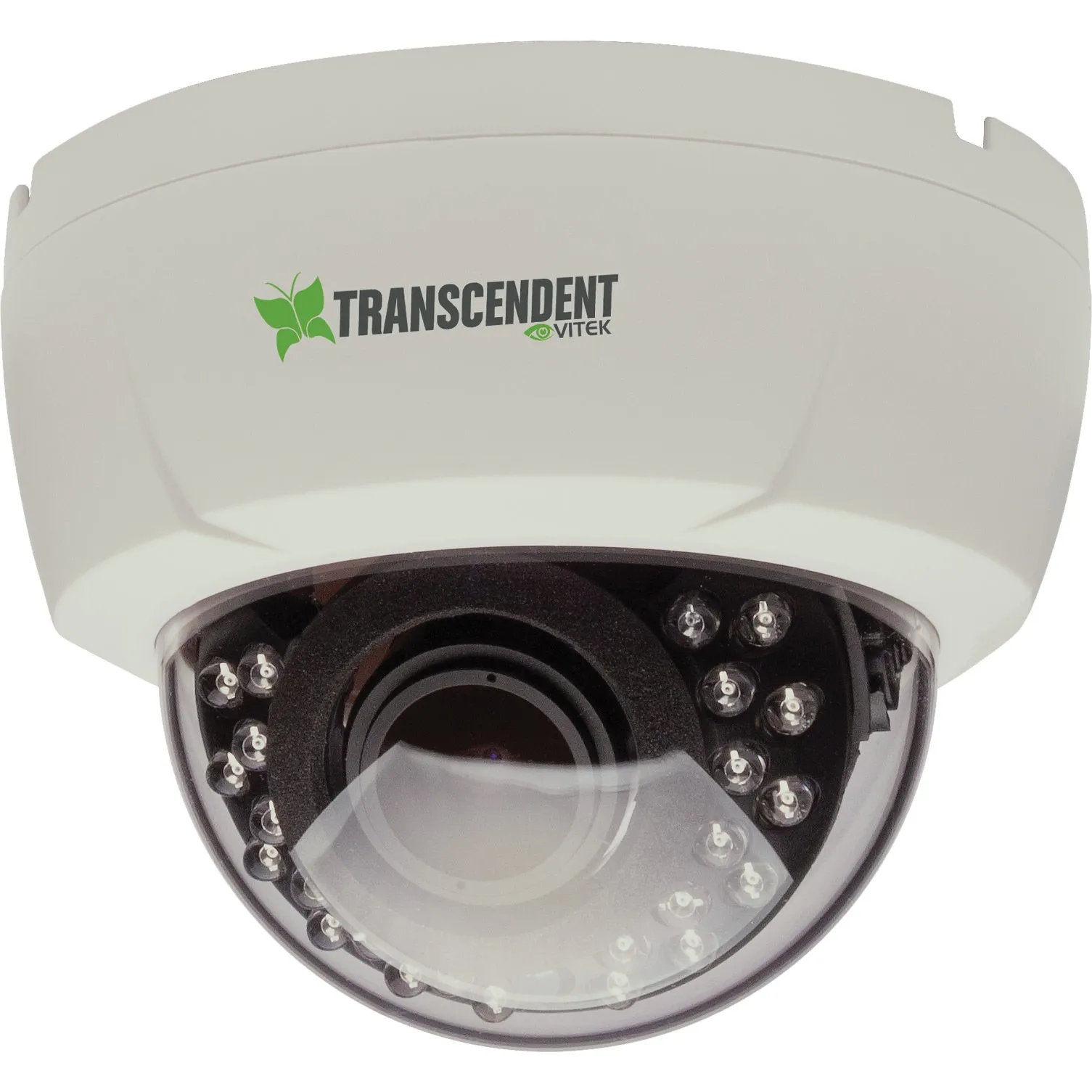

2 MegaPixel 4-in-1 Indoor HD over COAX Dual Voltage (12VDC/24VAC) Varifocal Dome Camera
- 1/2.9” 2.0 Megapixel Progressive Scan CMOS Sensor
- 20fps @1080p, 30fps @720p
- True Day/Night by IR Cut Filter
- HD-TVI / HD-CVI / AHD / 960H CVBS Video Output (Selectable)
- 2.8~12mm Varifocal Lens
- 24 Integrated IR LEDs with up to65’ IR Range
- XD-DNR (3D-DNR / 2D-DNR) Noise Reduction
- True Wide Dynamic Range (WDR)
- Supports CoC (Control over COAX)
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- 12VDC / 24VAC Dual Voltage Operation
- 3 Year Warranty
Specifications:
- Image Sensor 1/2.9” 2 Megapixel Progressive Scan CMOS Sensor
- Signal System PAL/NTSC
- Effective Pixels 1920 (H) × 1080 (V) [1080P]
- Resolution 2MP (20pfs), 720P @ 30fps
- Video Output HD-TVI / HD-CVI / AHD / CVBS (Selectable), 1Vp-p Composite Output(75Ω/BNC), 4-in-1
- Lens 2.8~12mm Varifocal
- Day/Night Auto / Color / B&W / EXT
- Min. IIIumination Color: 0.01LUX , BW: 0LUX with IR ON
- Shutter Speed Auto
- IR LEDs 24 IR LEDs
- IR Distance 65’ (20M)
- Smart IR YES
- OSD Cable YES
- S/N Ratio ≥50dB (AGC Off)
- WDR Off / On
- Digital Noise Reduction XD-DNR (3D-DNR. 2D-DNR) Auto / Manual: 0~20
- White Balance Auto
- Back Light Compensation Adjustable – GLOBAL / ON: 0~7
- Other Features Mirror, Horizontal / Vertical Reverse
- Brightness / Sharpness 0~100 Steps, AUTO / MANUAL: 0~20
- Privacy Mask 16 Programmable Areas
- Motion Detection 4 Programmable Areas
- Control over COAX (COC) YES
- Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
- Power Input Dual Voltage: 12VDC / 24VAC
- Max Power 3W
- Power Consumption (12VDC) 480mA (IR ON) / 160mA (IR OFF)
- Power Consumption (24VAC) 240mA (IR ON) / 80mA (IR OFF)
- Protection Surge Protection
- Operation Conditions -4~140F / <90% Humidity
- Weight (Net, Shipping) 9.17oz. / .57lbs. / 260g, 12.70oz. / .79lbs. / 360g
- Dimensions (Dia × H) 4.4” × 3.5” (111.5cm × 90cm)
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Accessories:
- VT-TR4VPK: Video & Power Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1000’
- VT-TR4K: Passive Video Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1440’
