VTC-TNT4MEA

Transcendent Series 4 MegaPixel Motorized AF IP WDR Turret Camera with Programmable Analytics

• 1/3.0” 4.0 MegaPixel CMOS Image Sensor
• Up to 30fps @ 4MP (2688 × 1520)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165’ IR Range), White Light (up to 130’)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• Min. Illumination: 0.004 lux @F1.4, AGC On, 0 lux with Illumination On
• Programmable Analytics: Line crossing / Region Intrusion Detection (by human / vehicle classification), Object Abandoned / Missing, Scene Change Detection, Video Blur, Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via VMS, Internet Explorer (Plug-in Req’d), Edge in IE Mode, and iOS & Android Apps
• ONVIF Compliant

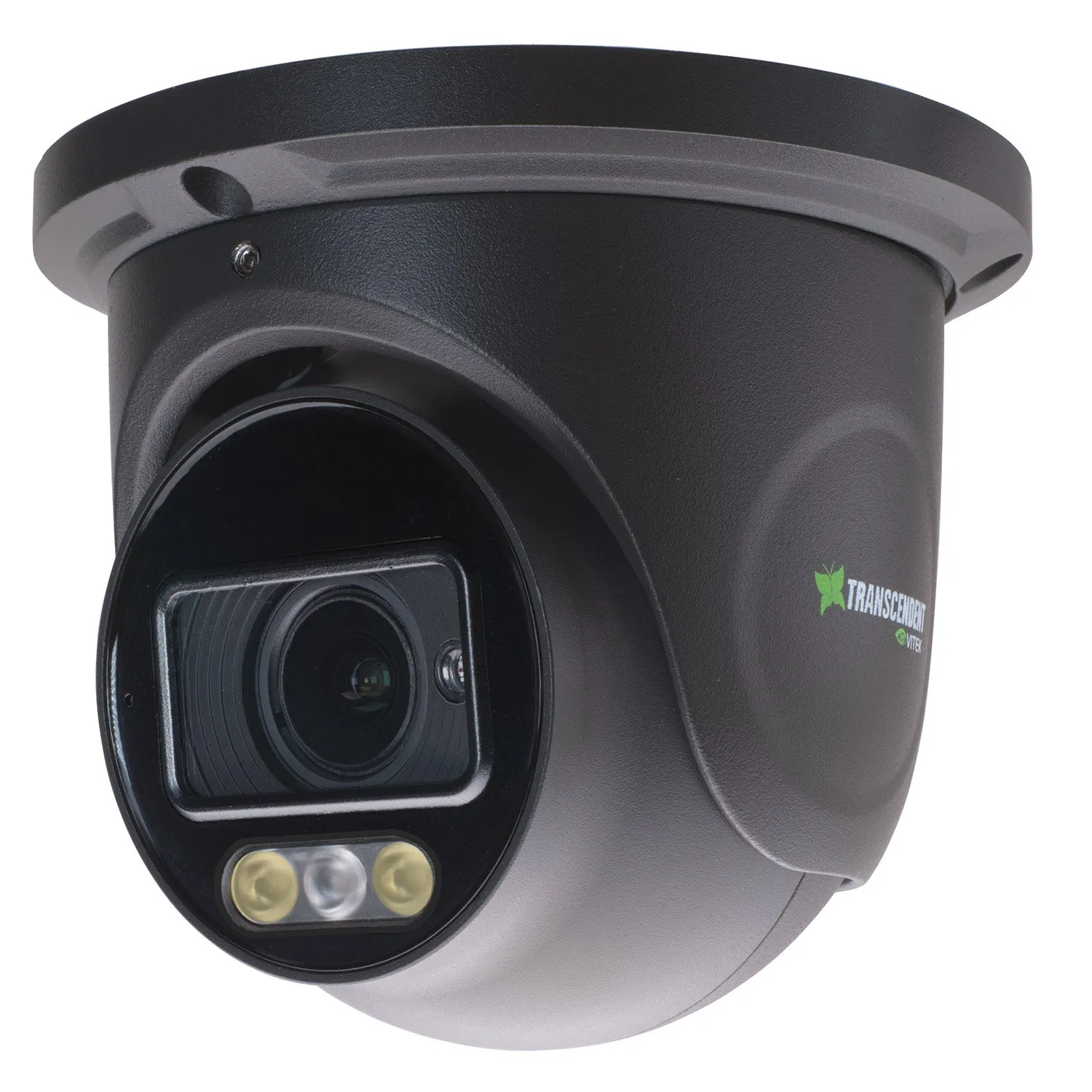

• Available in Ivory or Charcoal (VTC-TNT4MEAB)
• IP67 Weather Resistance
• Optional J-Boxes, Wall and Pendant Mounting Options, plus pole and corner adapters (see accessories tab)
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty

Specifications:

• Image Sensor 1 / 3.0” CMOS
• Image Size 2560×1440
• Electronic Shutter 1 / 4s ~ 1 / 100000s
• Lens 2.8~12mm Motorized Varifocal
• Min. Illumination 0.004 lux @F1.6, AGC On, 0 lux with illumination on
• Field of View Horizontal: 92°~31°, Vertical: 48°~17.2°, Diagonal: 112°~35.6°
• Focus Motorized AutoFocus
• Supplemental Light Range IR range: up to 165’, White light range: up to 130’
• Day & Night ICR
• Wide Dynamic Range 120dB
• BLC Yes – Backlight Control
• HLC Yes – Highlight Control
• Digital Noise Reduction Yes – DNR
• S/N Ratio ≥50dB
• Angle Adjustment Pan: 0°~360°, Tilt:0°~80°, Rotation: 0°~360°
• Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264, Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• H.265 Standard Main Profile@Leve4.1 High Tier
• Resolution 4MP(2688×1520), 1080P(1920×1080 ), 720P(1280×720), D1, VGA(640×480), 480×240, CIF
• Main Stream 4MP/3MP/1080P/720P (60Hz: 1~30fps, 50Hz: 1~25fps)
• Sub Stream 720P/D1/VGA/CIF (60Hz: 1~30fps, 50Hz: 1~25fps)
• Third Stream D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)
• Bit Rate 64 Kbps ~6Mbps
• Bit Rate Type VBR / CBR
• Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
• Audio Compression G711A/U
• ROI Each ROI to be configured separately
• Network RJ45
• CVBS Video Out No
• Audio 1CH audio input, 1CH built-in MIC*
• Storage Built-in microSD card slot, up to 256GB + Network remote storage
• Reset Yes
• Remote Monitoring Web browser / Transcendent NVR / VMS / Mobile App
• Web Browser Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
• Online Connection Support simultaneous monitoring for up to 6 users, Support multi-stream real time transmission
• Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS
• Interface Protocol ONVIF
• Smart Alarm Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, video exception
• Programmable Analytics Line crossing / Region Intrusion Detection (by human / vehicle classification), Object Abandoned / Missing, Scene Change Detection, Video Blur, Video Color Cast Detection
• More Features Watermark, IP address filtering, video mask, heartbeat, ANR, cloud upgrade, smart supplement light, corridor pattern
• PoE Yes (IEEE802.3af)
• Ingress Protection IP67 Weather Resistance
• Security Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP
• D.O.R.I. 2.8~12mm(W) Detect: 218ft(66m) Observe: 87ft(27m) Recognize: 44ft(13m) Identify: 23ft(7m) 2.8~12mm(T) Detect: 669ft(204m) Observe: 269ft(82m) Recognize: 135ft(41m) Identify: 66ft(20m)
• Power Supply DC12V/PoE
• Power Consumption ≤9.5W
• Operating Conditions -22°F~140°F (-30°C~60°C), Humidity: less than 95 % (non-condensing)
• Dimensions 5.15” × 4.30” (130.7mm × 109.3mm)
• Weight 1.65lbs / 26.46oz / 0.75kg (NET) 2.09lb / 30.54oz / .95kg (SHIPPING)
• Installation Ceiling mounting, wall mounting – see additional optional mounting options
• Certificate CE, FCC
• Environmental Protection Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• Transcendent Series NDAA Compliant High Definition 4 Megapixel IP Network Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via VMS, Web Browser, and iOS & Android Apps. These models also feature enhanced night vision using White Light emitters.

Accessories:

• VT-TJB01: Junction Box for Cable Management for use with Select Transcendent Bullet and Turret Style Cameras
• VT-TJB021: Optional Junction Box for use with Select Transcendent Motorized Turrets and Domes
• VT-TWMT-4: Optional Wall Mount for use with Transcendent Motorized Turrets
• VT-TPDM-2: Mount Post Adapter – Requires VT-TJB01
• VT-TPDM-3: Pendant Mount Post Adapter – Requires VT-TJB021
• VT-TWM01: Optional Wall Mount for Select Transcendent Cameras – Requires VT-TJB021

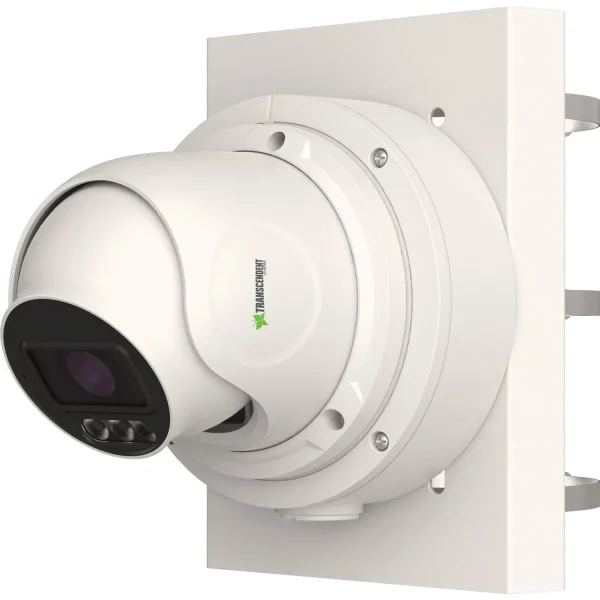

• VT-TPLMT: Universal Transcendent Pole Mount Adapter
• VT-TCNMT: Universal Transcendent Corner Mount Adapter

Configurations:

• VTC-TNT4MEA

4 MegaPixel NDAA Compliant H.265 20fps Motorized Turret Camera with White Light Emitters + Matrix IRs w/130′ Range, Programmable Analytics, 2.8~12mm Lens, Metal Housing, 12VDC/PoE, IP67 – Ivory

• VTC-TNT4MEAB

4 MegaPixel NDAA Compliant H.265 20fps Motorized Turret Camera with White Light Emitters + Matrix IRs w/130′ Range, Programmable Analytics, 2.8~12mm Lens, Metal Housing, 12VDC/PoE, IP67 – Charcoal
