VTC-TNB16X4MS

Transcendent 16 MegaPixel Indoor/Outdoor Multi-Sensor 180° Panoramic IP Camera

• 4 × 1/1.8” BSI (Back Side Illuminated) 4 MegaPixel Progressive Scan CMOS STARLIGHT Sensor
• Four Separate 1/1.8” 4.0 MegaPixel Progressive Scan CMOS Image Sensors (Total of 16MP)
• Resolution of up to 5520 × 2400
• 4 × 4.5mm Fixed Lens
• 1s~1/10,000s; Auto/Manual Electronic Shutter
• 8 IR LEDs, up to 75’ IR Range (with 180° Array)
• Digital Wide Dynamic Range (D-WDR)
• Analytics including: Line Crossing, Region Entrance / Exit
• True Mechanical Day/Night function by ICR
• XD-DNR (2D & 3D-DNR) Noise Reduction
• Field of View Capacity: Pan (180°), Tilt (85°)
• Smart H.265 / H.264 / MJPEG Triple Streaming
• Single IP Address Input Required
• Remote View via VMS, Edge in IE Mode, iOS & Android Apps
• ONVIF Compliant
• MicroSD Memory Card Slot for Local Recording (up to 256GB)
• IP67 Weather Resistance + IK10 Impact Rating
• 1 Ch. In, 1 Ch. Audio Out*, 1 Ch. Alarm In + Out, CVBS
• 12VDC & PoE+ (Power over Ethernet) Operation
• J-Box VT-TJB010-W Included and Universal Corner and Pole Mount Adapters Available
• 3-Year Warranty

Specifications:

• Image Sensor 4 × 1/1.8” 4.0 Megapixel Progressive Scan CMOS
• Image Size 16 MegaPixel: 5520 × 2400
• Electronic Shutter 1s -1 / 10,000s (Auto / Manual)
• Min. Illumination Color: 0.008Lux @ (F2.0 GC ON) /W: 0.001Lux @(F2.0 GC ON), 0 Lux with IR
• Lens 4.5mm Fixed Iris Lens × 4
• Day/Night True Day / Night by ICR
• Digital Zoom 16×
• IR LEDs / Type / Distance 8 / Smart IRs / 75’ with 180 Degree Array
• Video Compression H.265 (Smart) / H.264 (Smart) / MJPEG
• Audio Compression G.711A / G.711U
• Resolution 5520 × 2400, 3840 × 1680, 2784 × 1200 (30/25fps)
• DNR XD-DNR (2D-DNR & 3D-DNR)
• Other Electronic DeFog, Picture Overlay, 4 Programmable Privacy Masks, HLC, BLC,
• Image Setting Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, AWB adj. by Client Software/Browser
• Analytics Motion Detection, Line Crossing, Region Entrance / Exit, Video Tampering, Exception
• Smart Alarm SD Card Record, Triggering Record, Notify Control Center, Uploading SD Card, Sending e-mail
• Alarm In / Alarm Out 1 Ch. Alarm In + 1 Ch. Alarm Out
• ROI Each ROI to be Configured Separately
• Network RJ45 10M / 100M Ethernet Port, PoE (802.3af)
• Security Measures User Authentication, Host Authentication (MAC address); HTTPs encryption; IEEE802.1x Port-based Network Access Control; IP Address Filtering
• Network Protocols HTTP, HTTPs, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DONS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, PPPoE, DHCP
• Audio 1 × In & 1 × Out (Two-Way Audio)*
• Storage Card Slot Supports One MicroSD up to 256GB
• Remote Viewing VMS / Web Browser / Mobile (iOS / Android)
• RS 485 1 CH; Pelco-D/P Protocol, Custom Protocols Available
• Supported Browsers Internet Explorer 8-11, Edge in IE Mode
• Connection Protocol ONVIF, API, SDK
• Ingress Protection IP67
• Impact Rating IK10
• Power 12VDC / POE+ (802.3at), Max 25W with IR On
• Working Environment -22°~140 (-30°C ~ 60°C) / <90% Humidity, Cold Start at -4°F (-20°C)

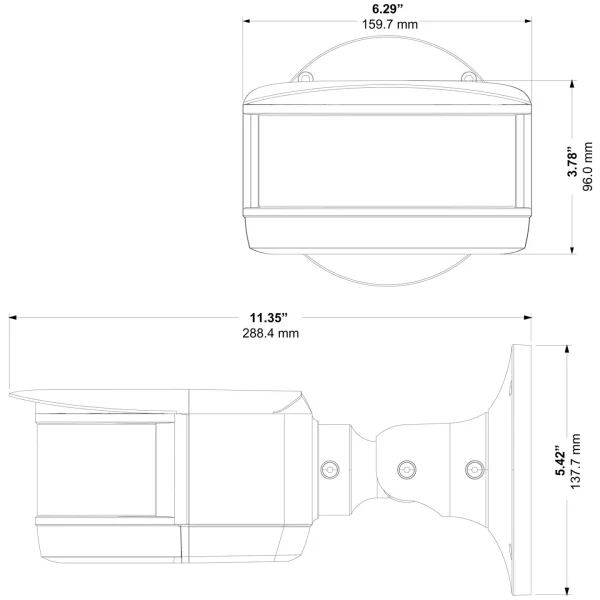

• Dimensions L×W×H 11.35” × 6.29 ” × 5.42” (288.4mm × 159.7mm × 137.7mm)
• Weight  74 oz. (4.62 lbs.) (2.1kg)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• Transcendent HD Network Cameras offer unprecedented performance and value. This 16MP “Peri-Cam” model utilizes four separate 4.5mm lenses to create a virtually seamless ultra high resolution 180° field of view. Features include Infrared LEDs for viewing in total darkness, 2-Way Audio and a micro SD card slot for local recording. One or more can be used as an overview in a sophisticated network video solution or as an All-in-One Video Surveillance system with Mobile applications supporting Virtual Reality mode.

Accessories:

• VT-POE95: 95 Watt POE Mid-Span Injector, 4-Pair Compliant
• VT-POE60: 60 Watt POE Mid-Span Injector, 4-Pair Compliant
• VT-TJB010-W: Included with all packages containing the Transcendent VTC-TNB16X4MS camera, this junction box [in white color] for cable management is designed for use with this model.
• VT-TCNMT-W: White Colored Transcendent Corner Mount Adapter – reqs. VT-TJB010-W
• VT-TPLMT-W: White Colored Transcendent Pole Mount Adapter – reqs. VT-TJB010-W
