Transcendent 2.1 Megapixel 4-in-1 HDA Turret Camera w/2 High Power IR LEDs & Motorized Varifocal
- NDAA Compliant
- 1/2.8” 2.1 Megapixel Progressive Scan CMOS Sensor
- Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
- High Definition Analog (HDA): HD-TVI / AHD / CVI / CVBS (Selectable) Video Output
- 2.8-12mm Motorized Varifocal Lens
- Matrix IR with up to 165′ Range
- True Wide Dynamic Range (WDR)
- True Mechanical Day/Night function by ICR
- 2D-DNR Noise Reduction
- IP67 Weather Resistance
- Supports Up The COAX Control
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- Available in Ivory or Charcoal Gray (VTC-THT2RMSB)

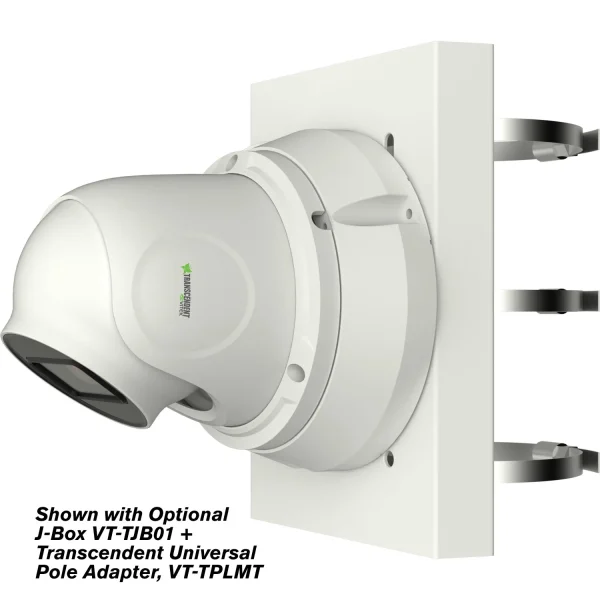

- Optional Junction Box (VT-TJB01) & Other Mounts Available
- 12VDC Operation
- 3 Year Warranty
Specifications:
- Image Sensor 1/2.8” 2.1 Megapixel Progressive Scan CMOS Sensor with Advanced Starlight Technology
- Signal System PAL/NTSC
- Effective Pixels 1920 x 1080
- Resolution HD-TVI / AHD / CVI: 2.1 MegaPixel / CVBS: 960H
- Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Lens 2.8-12mm Motorized Varifocal
- Day/Night True Day/Night by ICR
- Min. Illumination Color: 0.001 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
- IR LEDs Matrix IR
- IR Distance 165’
- S/N Ratio ≥52dB (AGC Off)
- WDR True WDR
- Other Features Auto Gain Control, Auto White Balance, Freeze, Mirror, Sharpness, Smart IR, Motion Detection, Privacy Mask, Auto Defect Correction
- Compensation Features Backlight Compensation, Lens Shading Compensation, Highlight Compensation (YES)
- Digital Noise Reduction (DNR) 3D-DNR
- White Balance Auto (AWB)
- BLC YES
- Control over COAX (COC) YES
- Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
- Power Input 12VDC
- Power Consumption (12VDC) IR Off: 125mA / IR ON: 700mA
- Weather Resistance IP67
- Operation Conditions -4~122F / 10%~90% Humidity
- Weight 22.58 0z / 1.41 lbs. / 640g
- Dimensions 5.13 x 4.23” (130 x 110mm) Dia x W
- NDAA Compliant Yes
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series High Definition 1080P HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
Accessories:
- VT-TJB01: Junction Box for Cable Management for use with Select Transcendent Bullet and Turret Style Cameras
- VT-TJB021: Optional Junction Box for use with Select Transcendent Motorized Turrets and Domes
- VT-TWMT-4: Optional Wall Mount for use with Transcendent Motorized Turrets
- VT-TPDM-2: Mount Post Adapter – Requires VT-TJB01
- VT-TPDM-3: Pendant Mount Post Adapter – Requires VT-TJB021
- VT-TPLMT: Universal Transcendent Pole Mount Adapter
- VT-TCNMT: Universal Transcendent Corner Mount Adapter
