Transcendent 2.1 Megapixel 4-IN-1 HDA Bullet Camera w/Matrix IR & Motorized Varifocal
- 1/2.8” 2.0 MegaPixel Progressive Scan CMOS Sensor
- NDAA Compliant
- Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
- High Definition Analog (HDA): HD-TVI / AHD / CVI / CVBS (Selectable) Video Output
- 2.8-12mm Motorized Varifocal Lens
- Matrix IR with up to 165′ IR Range
- True Wide Dynamic Range (WDR)
- True Mechanical Day/Night function by ICR
- 3D-DNR Noise Reduction
- IP67 Weather Resistance
- Supports Control over COAX
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)

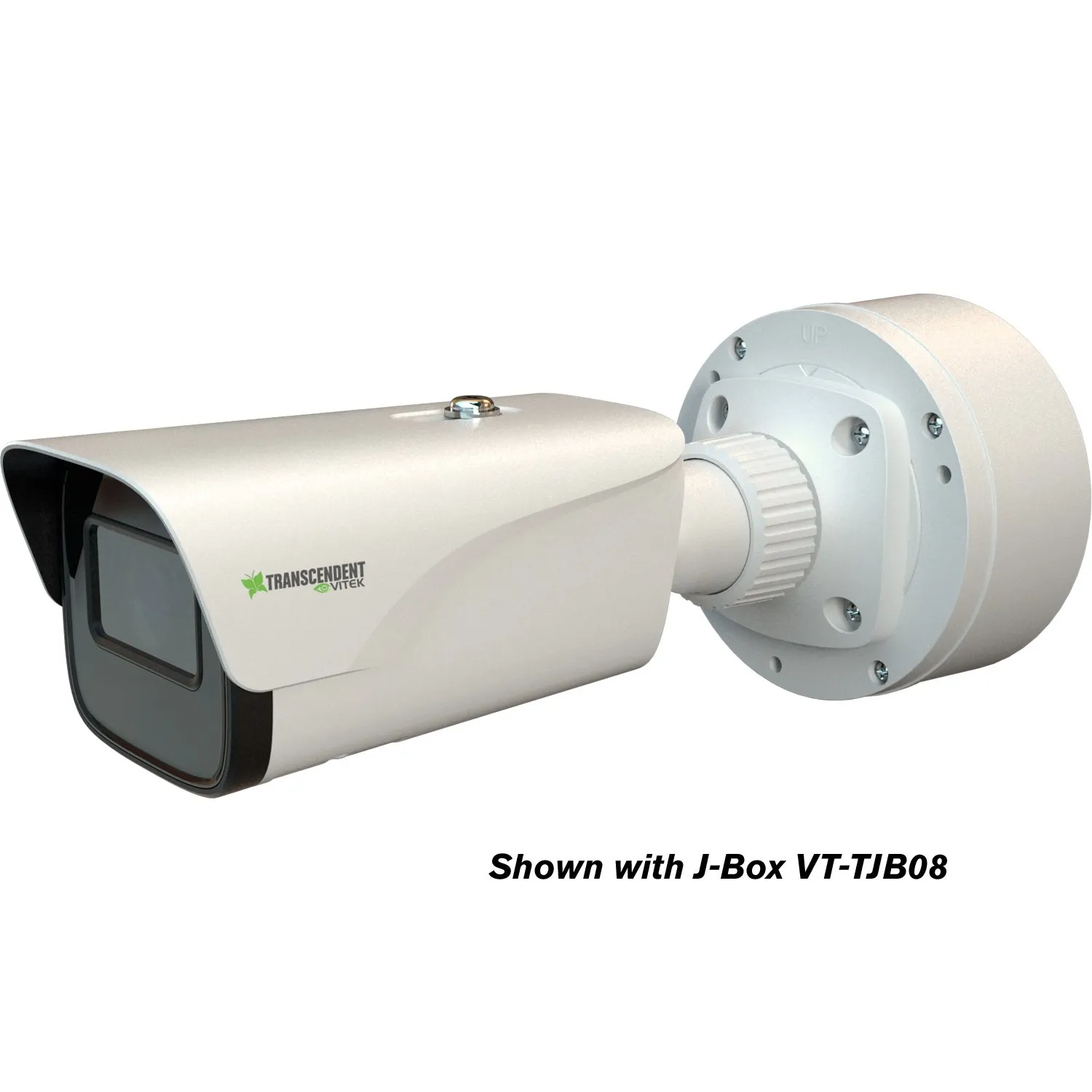

- Optional Junction Box Mount Available (VT-TJB08)
- 12VDC Operation
- NDAA Compliant
- 3 Year Warranty
Specifications:
- Image Sensor 1/2.8” 2 MegaPixel Progressive Scan CMOS Sensor
- NDAA Compliant Yes
- Signal System NTSC/PAL
- Effective Pixels 1920 x 1080
- Resolution HD-TVI / CVI / AHD: 1080p/720p (2 MegaPixel) / CVBS: 960H
- Video Output HD-TVI / CVI / AHD & CVBS (Selectable)
- Lens 2.8mm ~ 12mm
- Day/Night True Day/Night by ICR
- Min. IIIumination Color: 0.001 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
- WDR True Wide Dynamic Range (120dB)
- IR LEDs / Range 2 Matrix / Up to 165’
- Other Features Auto Gain Control, Auto White Balance, Freeze, Mirror, Sharpness, Motion Detection, Privacy Mask, Auto Defect Correction
- Dynamic (Smart) IR YES
- S/N Ratio ≥52 dB (AGC Off)
- Digital Noise Reduction 3D-DNR
- BLC, LSC, HLC YES – Backlight Compensation, Lens Shading Compensation, Highlight Compensation
- Control over COAX YES (COC)
- Transmission Distance Up to 1500’ (Depending on Cable Characteristics and Integrity)
- Power Input 12VDC
- Power Consumption IR Off: 125mA / IR On: 700mA
- Ingress Protection IP67
- Operating Conditions -4°~122° / 10%~90% Humidity
- Dimensions (L x W x H) 8.68 x 3.15 x 2.78” (220.5 x 80.1 x 70.5mm)
- Weight 21.16 oz. / 1.32 lbs. / 600g
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series High Definition 1080P HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
Accessories:
- VT-TJB08: Junction Box for Cable Management for use with all Transcendent Bullet and Turret Style Cameras
Configurations:
