Name: VTD-TND4RMA4B
SKU: VTD-TND4RMA4-1
Availability: InStock

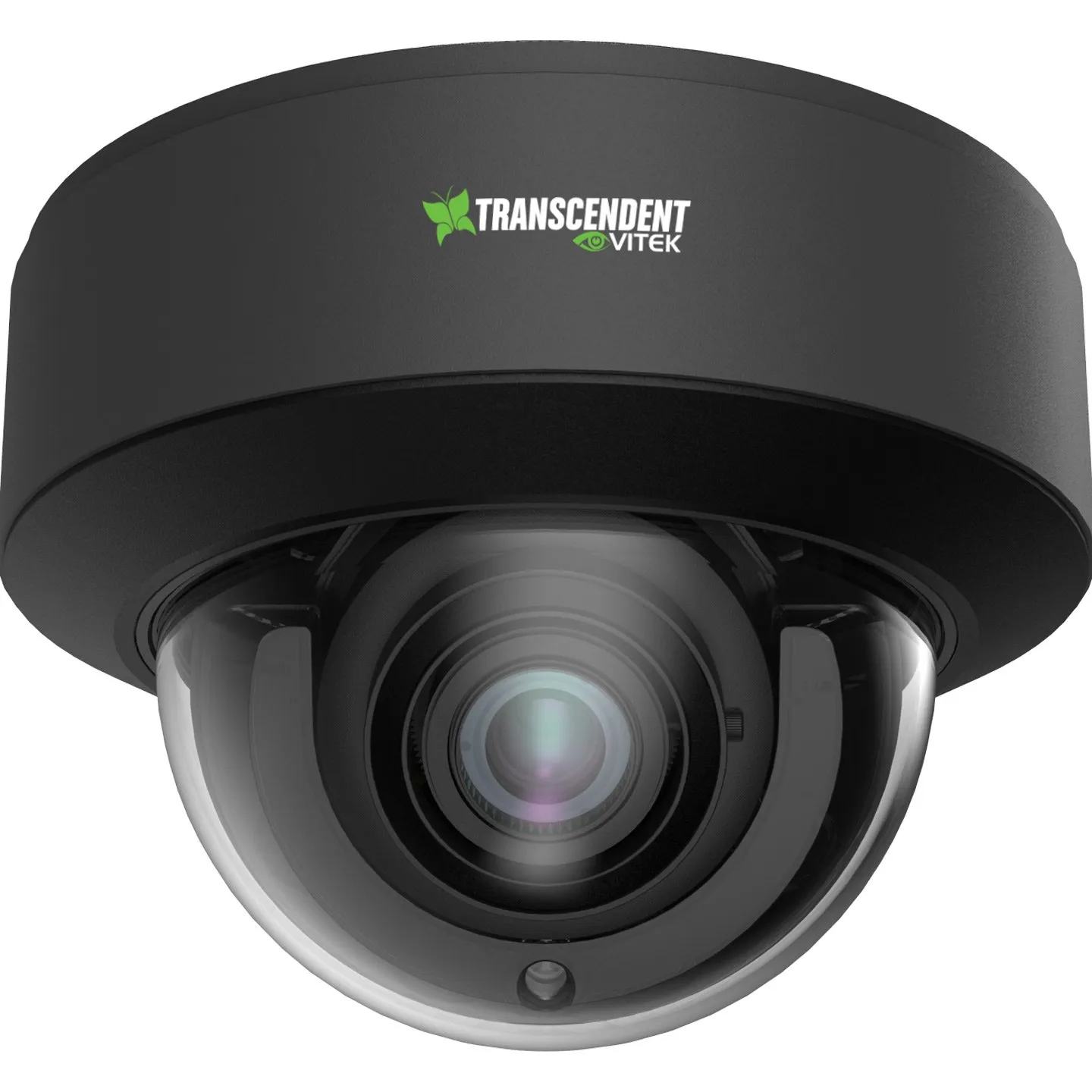

4 MegaPixel GEN IV Advanced A.I. Motorized IP Vandal Dome Camera

1/3.0” 4.0 Megapixel CMOS Image Sensor
Up to 30fps live view @ 4MP/3MP/1080p/720p/D1/CIF/480×240
Supports Still Image Recording Function
2 Matrix IRs (up to 165’ IR Range)
True Wide Dynamic Range
True Mechanical Day/Night function by ICR
XD-DNR (3D & 2D Digital Noise Reduction)
GEN IV Advanced Analytics: Regional Entrance / Exit Detection, Line Crossing, Target Counting (All by Human / Motor Vehicle Classification) Face A.I., Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
Face A.I. 4.0(Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison)
1 Channel Audio In + 1 Channel Audio Out + Built-in Mic*
Alarm In + Out + CVBS
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
ONVIF Compliant
MicroSD Card Slot for Local Recording (up to 256GB)
IP67 Weather Resistance + IK10 Impact Rating
Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2), Pendant Mount (VT-TPDMT-A2), and In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available
12VDC & PoE (Power over Ethernet) Operation
Available with 2.8~12mm Motorized Varifocal in Ivory or Charcoal Grey, VTD-TND4RMA4 (Ivory), VTD-TND4RMA4B (Charcoal)
3-Year Warranty

Specifications:

Image Sensor 1/3” 4.0 Megapixel Progressive Scan CMOS
NDAA Compliant Yes
Image Size 4 MegaPixel (2592 × 1520)
Resolution 4 MP(2592 × 1520) / 3 MP(2304 × 1296) / 1080P(1920 × 1080) / 720P(1280 × 720) / D1 / CIF(480 × 240)
Min. Illumination 0.005 lux@F1.6,AGC ON, 0 lux with IR
Lens 2.8~12mm Motorized Varifocal Lens
Day / Night True Day / Night by ICR
IR LEDs / IR Distance 2 Matrix Style IRs / Up to 165’
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Audio Compression G.711A / G.711U
Main-Stream 4MP/2K/3MP/1080P / 720P (60Hz: 1 ~ 30fps, 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps, 50Hz: 1~50fps)
Sub / Third Stream 720P/D1/CIF (60Hz: 1 ~ 30fps, 50Hz: 1~25fps) / D1/CIF/480×240 (60Hz: 1 ~ 30fps: 50Hz: 1~25fps)
Bit Rate / Type 64 Kbps ~ 8 Mbps / VBR, CBR
Wide Dynamic Range 120dB Super WDR
Other Features Highlight Compensation, Backlight Compensation, DeFog, Hardware Reset
Digital Noise Reduction XD-DNR (3D-DNR & 2D-DNR)
Image Setting ROI, Saturation, Brightness, Chroma, Contrast, Sharpen, NR; adjustable through client software / web browser
GEN IV Advanced Analytics Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification] Face A.I., Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
Face A.I. 4.0 Face Detection / Facial Detection, Face Recognition / Facial Recognition, Face Picture Comparison
Smart Alarm Motion Detection, SD Card Error, SD Card Full
Region of Interest (ROI) Each ROI to be Configured Separately
Audio 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*
Alarm 1 Ch. In + 1 Ch. Out
CVBS Yes
Local Storage Built-in MicroSD Card Slot (up to 256GB)
Remote Viewing CMS / Web Browser / Mobile (iOS/Android)
Supported Browsers IE, Chrome, Firefox, Safari and Edge
Connection Protocol ONVIF
Ingress Protection IP67 + IK10
Power Input 12VDC / PoE
Power Consumption (12VDC) 350mA (LEDs Off) / 900mA (LEDs On)
Power Consumption (PoE) 9W
Working Environment -22° ~140°F (-30°~60°C) / < 95% Humidity
Weight 38.80 oz. / 2.42 lbs. / 1.1kg (NET) 48.86 oz. / 2.87 lbs/ 1.3kg (SHIPPING)
Dimensions (Dia × H) 5.55” x 3.95” (141.0mm x 100.2mm)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

Transcendent Series NDAA Compliant High Definition 4 Megapixel IP Network Cameras with GEN IV Advanced Analytics including Face Detection and Target Counting offer unprecedented performance and value. These simple, easy to install, attractively styled, IP Network Cameras transmit over remote viewing via CMS, Internet Explorer, and iOS & Android Apps.

Accessories:

VT-TJB010: Junction Box for Cable Management for use with NEW DESIGN Transcendent Motorized HDA Vandal Domes – Ivory
VT-TWMT-A2: Wall Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
VT-TPDMT-A2: Pendant Mount for Transcendent Large/Motorized NEW DESIGN HDA VANDAL DOME – Requires VT-TJB010 – Ivory
VT-TFMT-L2: Semi Flush Ceiling Dome Mount For Use w/Large Motorized Vandal Dome – NEW DESIGN FOR HDA Domes – Ivory
VT-TCNMT: Universal Transcendent Corner Mount Adapter – reqs. VT-TWMT-A2 + VT-TJB010
VT-TPLMT: Universal Transcendent Pole Mount Adapter – reqs. VT-TWMT-A2 + VT-TJB010

Configurations:

VTD-TND4RMA4B

NDAA Compliant 4 MegaPixel H.265+, 30fps@4MP and Below, 2.8~12mm Motorized Varifocal Vandal Dome Camera, 2 Matrix IRs w/ up to 165′ IR Range, GEN IV Advanced Analytics, Metal Housing, 12VDC/PoE, IP67 + IK10 – Charcoal
