Transcendent 5.0 MegaPixel 4-in-1 HDA Vandal Dome Camera w/Covert IR LEDs
- 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor
- High Definition Analog (HDA): HD-TVI & AHD: 5.0 MegaPixel/CVI: 4.0 MegaPixel/CVBS: 960H Video Output
- 2.8mm Fixed Lens
- 16 Covert IR LEDs with up to 65’ IR Range
- Digital Wide Dynamic Range (D-WDR)
- True Mechanical Day/Night function by ICR
- Digital DNR Noise Reduction
- IP67 Weather Resistance & IK10 Impact Resistance Rating
- Supports Control over COAX
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- 12VDC Operation
- 3 Year Warranty
Specifications:
- NDAA Compliant Yes
- Image Sensor 1/2.5” 5.0 Megapixel Progressive Scan CMOS Sensor
- Signal System PAL/NTSC
- Effective Pixels 2560 × 1936
- Resolution HD-TVI & AHD: 5.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
- Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Frame Rate 20fps @ 5MP, 30fps @ 4MP and Below
- Lens 2.8mm (Fixed)
- Day/Night True Day/Night by ICR
- Min. Illumination Color: 0.01 lux@F1.2, AGC ON / B/W: 0 lux (with IR ON)
- IR LEDs 16 IR LEDs
- IR Distance 65’
- S/N Ratio ≥52dB (AGC Off)
- WDR D-WDR
- Other Features AGC, Freeze, Mirror, Sharpness, Smart IR, Motion Detection, Privacy Mask, Auto Defect Correction
- Digital Noise Reduction (DNR) D-DNR
- White Balance Auto (AWB)
- BLC, LSC, HLC Backlight, Lens Shading, Highlight
- Control over COAX (COC) YES
- Transmission Distance Up to 1500’ (Depending on cable characteristics & integrity)
- Power Input 12VDC
- Power Consumption (12VDC) IR Off: 120mA / IR On: 360mA
- Weather / Impact Resistance IP67 / IK10
- Operation Conditions -4~122 / 10%~90% Humidity
- Weight 20.50 oz. / 1.25 lbs. / 580g
- Dimensions 4.68” × 3.44” (119mm × 88mm) Dia × H
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 5.0 MegaPixel resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
Accessories:
- VT-TJB03A: Junction Box for Cable Management for use with Select Transcendent Vandal Domes
- VT-TWMT-3: Compact Wall Mount for use with Fixed Vandal Dome and Turret Cameras
- VT-TFMT-S: Optional Semi-Flush Mount for use with Fixed Lens Vandal Dome Cameras
- VT-TPLMT: Universal Transcendent Pole Mount Adapter – Ivory (reqs. VT-TJB03A)

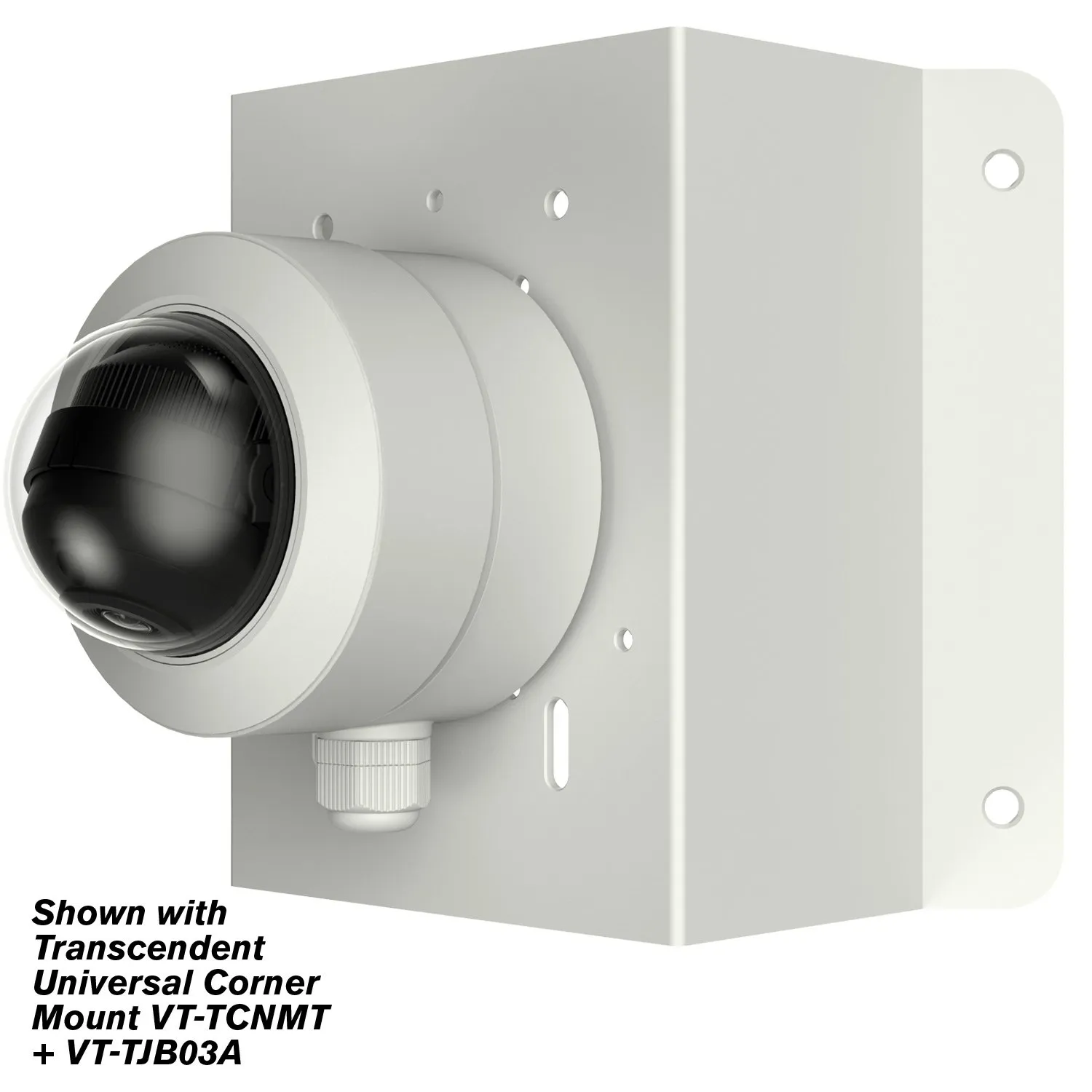

- VT-TCNMT: Universal Transcendent Corner Mount Adapter – Ivory (reqs. VT-TJB03A)
- VT-TR4VPK: Video & Power Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1000’
- VT-TR4K: Passive Video Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1440’
Configurations:
- VTD-THD5R2: 5MP 20fps TVI/AHD/CVI/CVBS Vandal Dome Camera w/16 Covert IR LEDs w/65′ IR Range, 2.8mm Fixed, IP67 + IK10, Metal Housing, 12VDC
