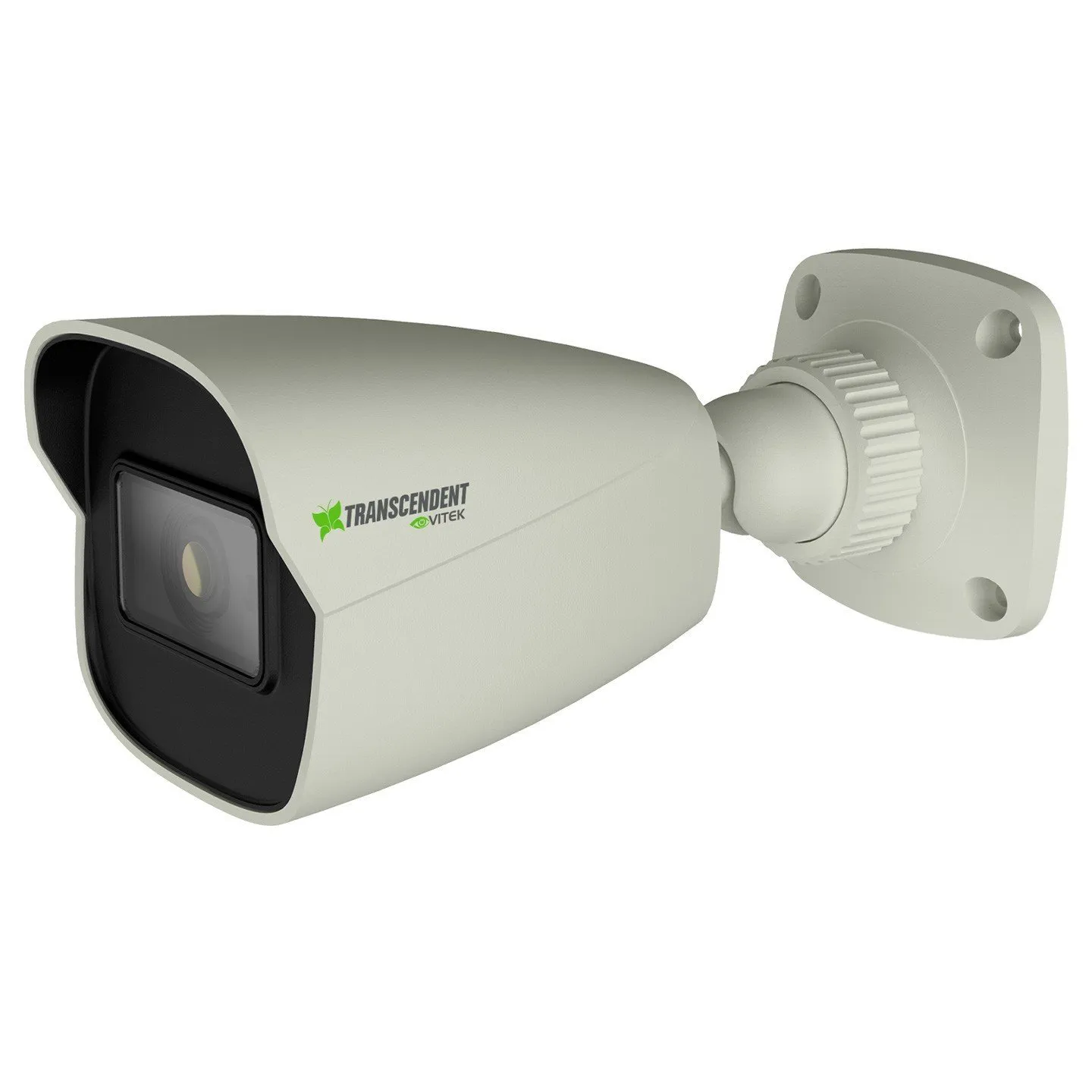

Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor 4-in-1 HDA Fixed Bullet Camera
- 1/2.5” 8MegaPixel [4K] Progressive Scan CMOS image sensor
- High Definition Analog (HDA) / HD-TVI / AHD / HD-CVI / CVBS
- 8MP@15fps, 5MP@20fps, 4MP@30fps High Res, True Color
- Supports OSD Menu
- Digital Wide Dynamic Range (D-WDR)
- 2.8mm Fixed Iris Lens
- 1 Matrix IR with up to 100’ IR Range
- True Mechanical Day/Night function by ICR
- 3D-DNR (Digital Noise Reduction)
- IP67 Weather Resistance
- Supports Up The COAX Control (CoC)
- Over 1500’ HD Video Transmission (Depending on cable characteristics and integrity)
- Wall Mount Included and Optional Junction Box (VT-TJB08) Available
- 12VDC Operation
Specifications:
- Image Sensor 1.25” 8.0 MegaPixel Progressive Scan CMOS Sensor
- Signal System NTSC/PAL
- Effective Pixels 3840 x 2160
- Resolution HD-TVI & AHD: 8.0 MegaPixel / CVI: 4.0 MegaPixel / CVBS: 960H
- Video Output HD-TVI / AHD / CVI / CVBS (Selectable)
- Frame Rate 8MP@15fps / 5MP@20fps / 4MP@30fps
- Lens 2.8mm – Fixed
- Day/Night True Day/Night by ICR
- Min. Illumination Color: 0.001 lux@F1.2, AGC ON / B/W: 0 lux
(with IR ON) - IRs 1 Matrix
- IR Distance Up to 100’
- Dynamic (Smart) IR YES
- S/N Ratio ≥52 dB (AGC Off)
- Wide Dynamic Range D-WDR (Digital Wide Dynamic Range)
- Digital Noise Reduction 3D-DNR
- Auto White Balance YES (AWB)
- Back Light Compensation YES (BLC)
- Up the COAX Control (COC) YES
- Transmission Distance Up to 1500’ (Depending on Cable Characteristics
and Integrity) - Power Input 12VDC
- Power Consumption IR Off: < 2W / IR On: < 5W
- Weather Resistance IP67
- Operation Conditions -4°~122° / 10%~90% Humidity
- Weight 15.52oz / .97lb / 440g
- Dimensions 6.59″ × 2.93″ × 2.93″ (74.5mm × 74.5mm × 167mm) W × H × L
*Please research local, state and federal laws regarding the implementation of audio surveillance.
Features:
- Transcendent Series High Definition HD-TVI, AHD, CVI, and CVBS 4-IN-1 Cameras deliver up to 8.0 MegaPixel [4K] resolution and offer unprecedented performance and value. These simple, easy to install, attractively styled, analog HD Cameras transmit over your existing Coaxial cable at distances up to 1500’.
Accessories:
- VT-TJB08: Junction Box for Cable Management for Use with Select Transcendent Bullet and Turret Style Cameras
- VT-TR4VPK: Video & Power Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1000’
- VT-TR4K: Passive Video Balun Transmitter/Receiver pair for HD-TVI / AHD / CVI for distances up to 1440’
Configurations:
- VTC-THB8R2: 8MP [4K] TVI/AHD/CVI/CVBS Fixed Bullet Camera w/ Matrix IR LEDs w/100′ Range, 2.8mm, IP67, Metal Housing, 12VDC
