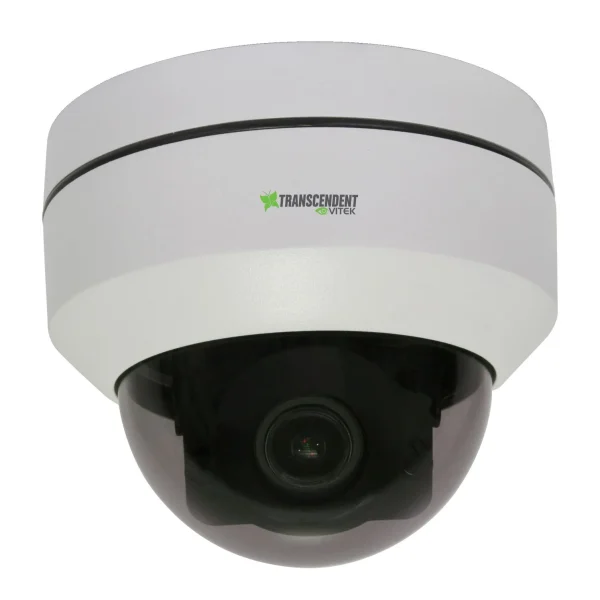

VT-TPTZ5HR-2A4

1080p Indoor/Outdoor HD over COAX 4-IN-1 PTZ Mini Vandal Dome Camera with 5X Optical Zoom and IR LEDs

HD over COAX Pan / Tilt / Zoom Mini Vandal Dome Camera featuring 5X optical zoom (2.7 ~13.5mm) and IR LEDs with a range of up to 65’. This Small and Attractive Pan Tilt Zoom Dome camera is vandal and weather resistant with an Infrared range beyond 65’. May be operated through Mobile and Client applications and programmed for patterns, tours and Auto pan.

• 1/2.8” 2 MegaPixel Sony® CMOS Sensor
• 1080P output TVI, AHD, CVI / 960H CVBS
• Motorized 5 × Optical Zoom, f=2.7~13.5mm, Auto-Focus
• 2 IR LEDs with up to 65’ IR Range
• Digital Wide Dynamic Range
• XD-DNR (3D-DNR & 2D-DNR)
• Pan Range: 0~350°, Pan Speed 45°/s, Tilt Range: 0~90°, Tilt Speed: 45°/s
• Built-in Surge and Lightning Protection
• 5 Tours
• DC12V Power
• Max 5W Consumption
• 3-Year Warranty
• NDAA Compliant

Specifications:

• Image Sensors 1/2.8″ SONY® 2.0 Megapixel Progressive Scan CMOS Sensor
• Effective Pixels 1920(H)×1080(V)
• Synchronization Internal
• System NTSC / PAL
• Electronic Shutter 1/30s~1/60,000s, 1/25s~1/50,000s
• Video Frame Rate 30fps / 25fps@1080P
• Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
• Video Output 1080P Output TVI, AHD, CVI / 960H CVBS
• IR LEDs Nano-tech IR LED: 42µ × 2pcs
• IR Range 65’ (20M)
• Pan Range, Speed 0°~350°, Horizontal, 45°/s
• Tilt Range, Speed 0°~90°, Vertical, 45°/s
• Presets 255
• Scan Mode Auto Pan/Pattern/Auto Tour
• PTZ Protocol Pelco-D/Pelco-P and CoC (Control over COAX)
• Baud Rate 2400 / 4800 / 9600 / 19200 / 38400
• Focal Length 2.7~13.5mm
• Aperture F1.4
• Lens Mount M12
• Focus / Zoom AUTO / Motorized 5× Optical Zoom
• Sense-Up OFF/ON
• WDR D-WDR (Digital Wide Dynamic Range)
• De-Fog OFF/ON
• BLC OFF / BLC / HSBLC
• White Balance ATW / AWC-SET / Indoor / Outdoor / Manual / AWB
• Day & Night EXT / AUTO / COLOR / B/W
• Noise Reduction XD-DNR (2D-DNR & 3D-DNR)
• Camera Title OFF/ON
• Motion Detection OFF/ON
• Privacy Mask OFF/ON
• OSD Language English / German / French / Italian / Spanish / Polish / Russian / Portugese / Dutch / Turkish / Chinese
• Ingress Protection IP66
• Power Supply DC12V±10%
• Power Consumption Max 5W
• Working Environment 14~122°F (10~50°C) / Less than 95% RH (no conden.)
• Dimensions (Dia×Height) 4.33 × 3.56” / 110mm × 90.5mm
• Weight (Net, Shipping) 1.21lbs (.55kg), 1.65lbs (.75kg)

*Please research local, state and federal laws regarding the implementation of audio surveillance.

Features:

• This HD over COAX Pan / Tilt / Zoom Mini Vandal Dome Camera features 5X optical zoom (2.7 ~13.5mm) and IR LEDs with a range of up to 65’. This Small and Attractive Pan Tilt Zoom Dome camera is vandal and weather resistant with an Infrared range beyond 65’. May be operated through Mobile and Client applications and programmed for patterns, tours and Auto pan.

Accessories:

• VT-TWMT-5PT: Wall Mount for 5” Surface PTZ VT-TPTZ5HR-2A4

Configurations:

• VT-TPTZ5HR-2A4: 1080p Indoor/Outdoor HD over COAX 4-IN-1 PTZ Mini Vandal Dome Camera with 5X Optical Zoom and IR LEDs

Downloads:

• VT-TPTZ5HR-2A4: Spec Sheet
