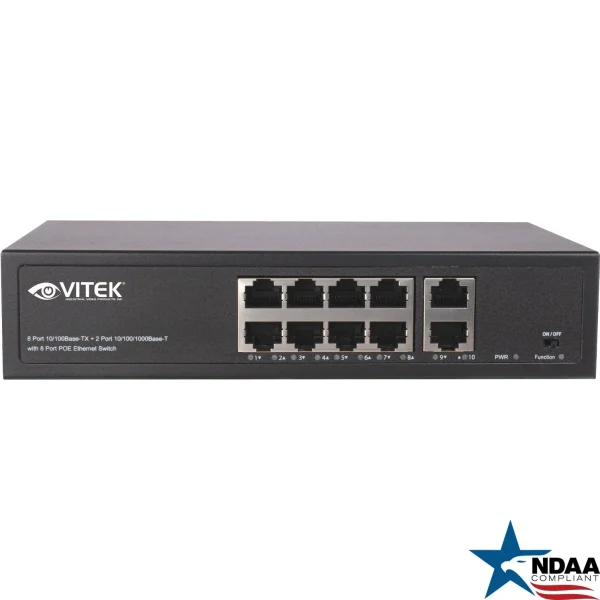

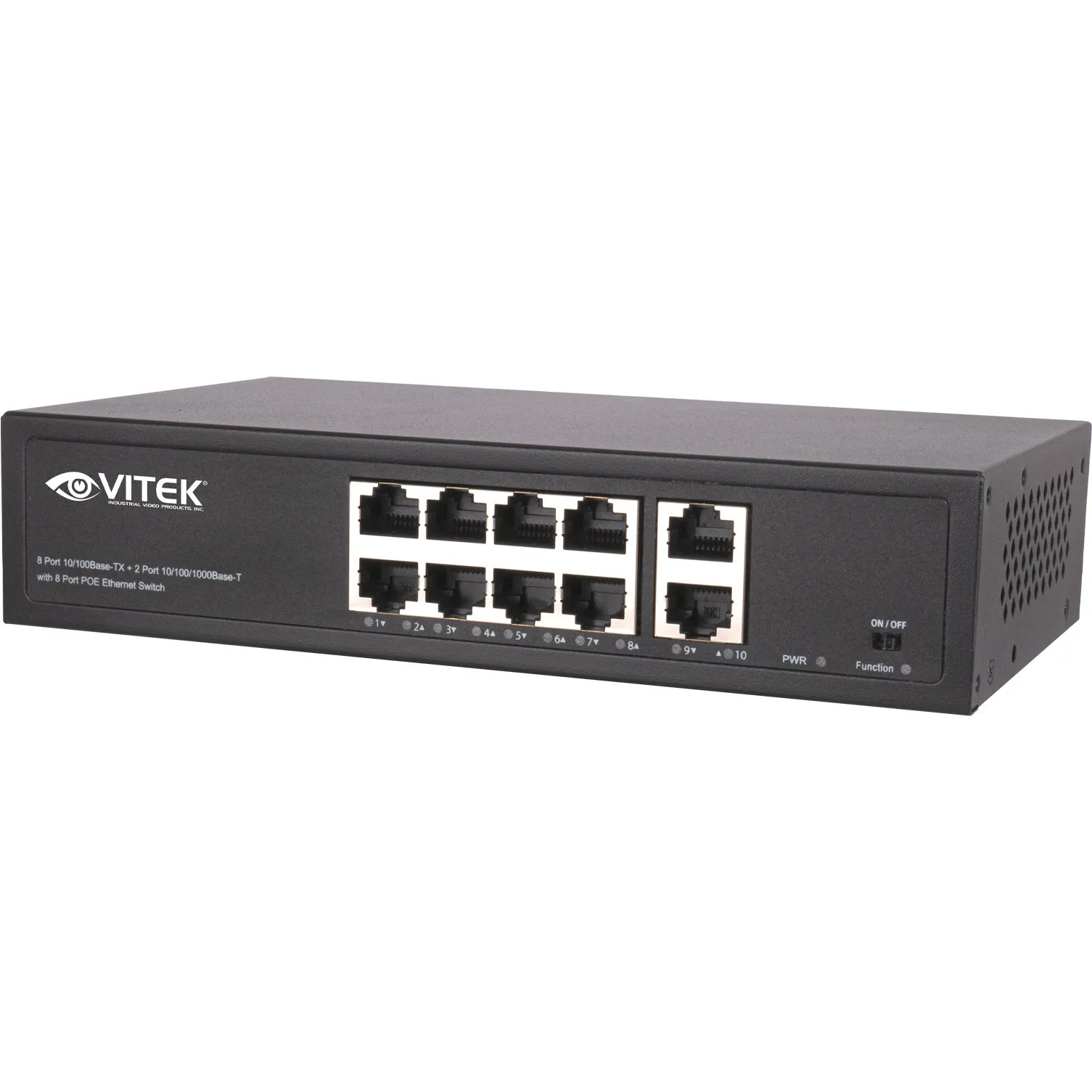

10 Port Compact Switch with 8 PoE Ports
- 10/100Base-TX PoE ports + 2 × 10/100/1000Base-TX Ports
- 120 Watt PoE Power Budget
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
- High back-plane bandwidth 5.6Gbps
- IEEE802.3x Flow control
- Surge protection for power port and data ports
- EMI standards complies with FCC, CE class B
- Long Distance Transmission, up to 200 meters (656’) per Port
- NDAA Compliant
- Rack Ears Included
- 3-Year Warranty
Specifications:
- Ports 8 × 10/100Base-TX ports + 2 × Uplink Ports (10/100/1000Base-TX)
- PoE Power Budget 30W per Port (Max): 120W Total Power Budget
- LED Indicators PWR, PoE, Link/Act LED
- Ethernet Standard IEEE 802.3 / 802.3u / 802.3af / 802.3at
- Input Voltage 100V~240V AC, 50/60Hz (for power adapter) 48VDC (for PoE switch)
- Power Consumption 120W (115W for PoE)
- Pin Assignment V- (RJ45 Pin 1, 2), V+ (RJ45 Pin 3,6)
- Speed 1-8 × Port:10/100Mbps / Uplink:1000Mbps
- Transmission Distance 100M (328’) at 100Mpbs / 200M (656’) at 10Mbps / Uplink: 100M (328’) at 1000Mpbs
- Transfer Rate 14,880 pps for 10Mbps / 148,800 pps for 100Mbps / 148,8000 pps for 1000Mbps
- Switching Capacity 5.6G
- MAC Address Table 2K
- Traffic Control IEEE 802.3× Full-Duplex Flow Control
- Power Supply Built-in Power Supply
- Working Temperature 32°~104°F (0°~40°C) / 20~85% RH
- Storage Temperature -40°~158°F (-10°~70°C)
- Thermal Methods Fanless
- Case Color Black
- NDAA Compliant Yes
- Dimensions 7.87” × 4.64” × 1.73” (200 × 118 × 44mm)
- Weight 7.87” × 4.64” × 1.73” (200 × 118 × 44mm), .45lbs / 33.5oz / 0.95kg
- Rack Ears Included
Configurations:
- VT-8P120A: 8 Port PoE Unmanaged Switch w/2 Port Uplink 120w -IEEE802.3/u/ab & 802.3af/at30W Max per Port, Metal case w/Surge Protection – NDAA Compliant
