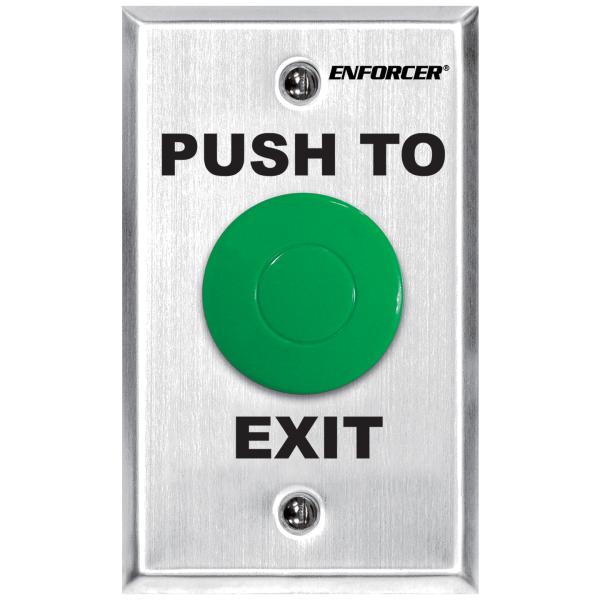

Seco-Larm Weather-Resistant Mushroom-Cap RTE Plate, “Push To Exit,” SPDT
The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access situations, with a 1-1/2″ (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC contact rated 50A@24VAC.
- ETL, Conforms to UL Std. 294
- Stainless-steel face-plate
- “Push to Exit” silk-screened on plate
- Fits into standard single-gang box
- Green mushroom cap push button
- NO/NC contact rated 50A@24VAC
Specifications:
| Contact Rating | 50A@24VAC |
| Faceplate | Brushed stainless steel |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| Built-in Timer | No |
| IP Rating | IP65 Weatherproof |
| Operating temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 4-1/2″x2-3/4″x2-3/4″ (114x70x70 mm) |
| Weight | 3.7-oz (105g) |
