Seco-Larm Illuminated RTE Plate with Built-in Timer – Slimline

Seco-Larm Illuminated RTE Plate with Built-in Timer – Slimline

• ETL, Conforms to UL Std. 294
• Square illuminated push button with caption “PUSH TO EXIT”
• Message language can be easily changed in the field to Spanish or French
• CE and UL approved switch is rubber-sealed to prevent liquid penetration
• Includes stainless-steel slimline plate
• Includes six colored 12-inch wire leads with easyto-attach spade lugs for fast installation
• Long-life green LED 12/24 VAC/VDC (~35,000hr)
• Weather resistant when properly installed
• Timed output from 1~180 s
• SPDT Switch rated 3A@24VDC
• Buzzer output for audio status
• UL 294 Access control levels
  • Destructive attack: Level I
  • Line security: Level I
  • Endurance: Level I
  • Standby power: Level I

Specifications:

Downloads:

• • Product Information Sheet (PI)
  • Manual

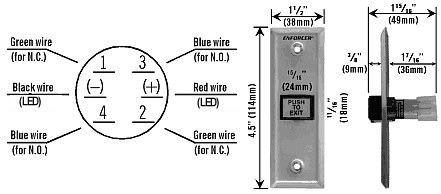

  • Diagram
