Seco-Larm 300-lb Electromagnetic Lock
The E-941SA-300RQ electromagnetic lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.
- 300-lb (136kg) Holding force
- No residual magnetism
- MOV Surge protection
- Anodized aluminum housing (US 28)
- Suitable for cabinets, small enclosures, or pedestrian gates
- Reversible installation for right- or left-swing doors
- Adjustable mounting bracket
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- Detachable faceplate for easy access to wiring
- 12/24VDC Selectable
- Lifetime limited warranty*
*Warranty applies in the USA and Canada only. Contact SECOÂ-LARM for details.
Specifications:
| Holding Force | 300-lb (136kg) |
| Operating Voltage | 12/24 VDC ±10% |
| Current Draw | 420mA@12VDC, 210mA@24VDC |
| Operating Temperature | 14º~131º F (-10º~55º C) |

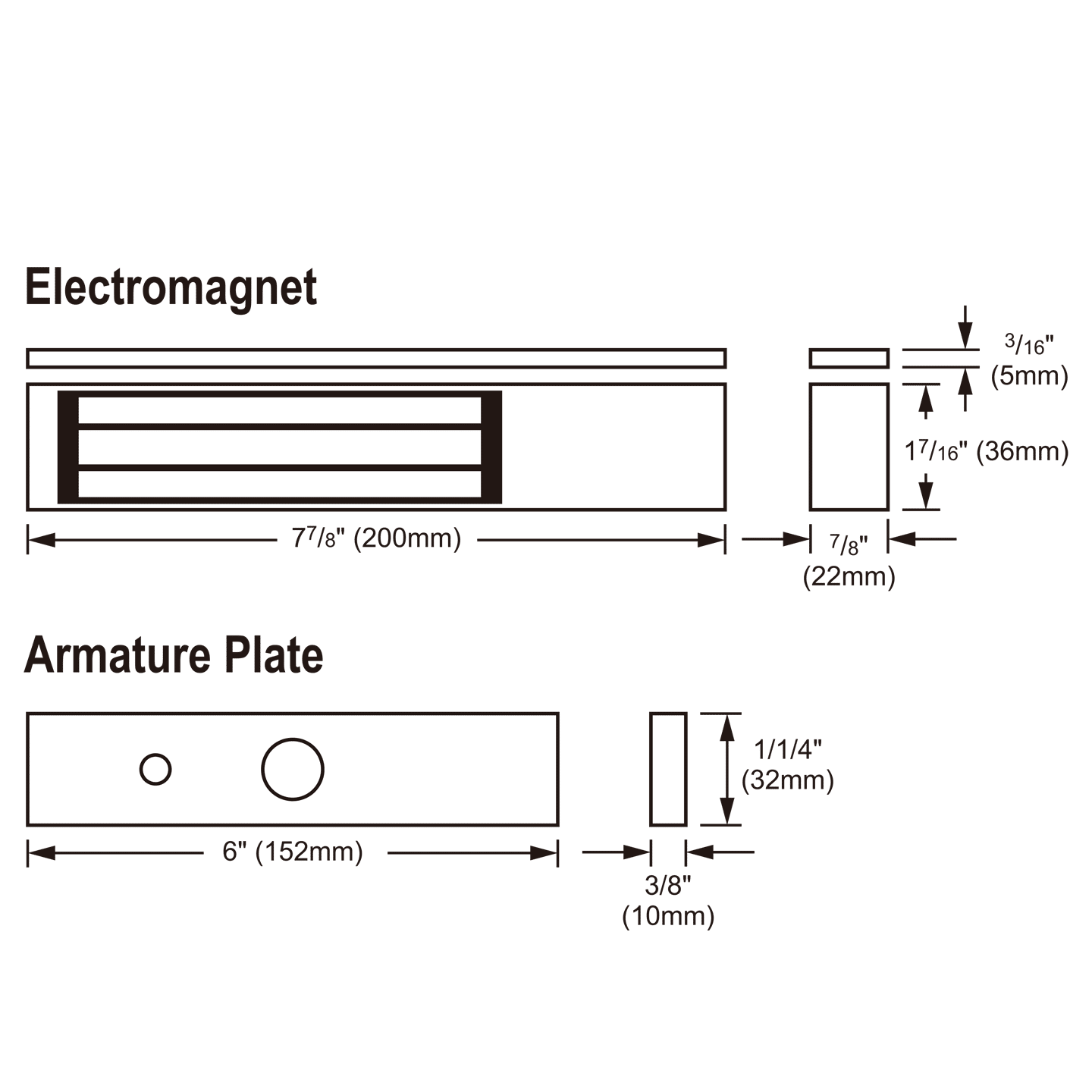

| Electromagnet Dimensions | 7-7/8″ x 1-3/8″ x 1″ (200 x 35 x 24 mm) |
| RoHS Compliance | Yes |
| Armature Dimensions | 6″ x 3/8″ x 1-1/4″ (152 x 10 x 32 mm) |
| Weight | 3-lb 5-oz (1.5kg) |
| Case Quantity | 10 pcs |
